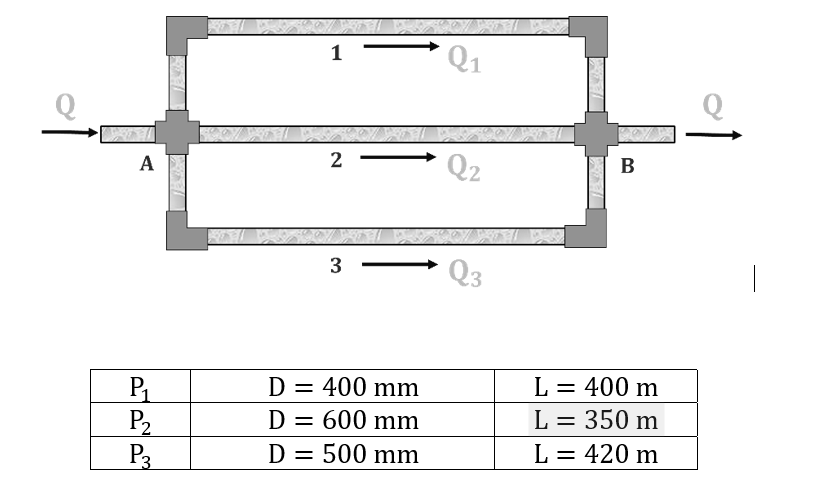

Situation 2. The total flow in the pipe system in the figure is
0.86 m³/s. Assume f = 0.032 for all pipes.
2.a. What is the flow in pipeline 1? (m³/s)
2.b. What is the flow in pipeline 2? (m³/s)
2.c. What is the flow in pipeline 3? (m³/s)
Situation 2 The Total Flow In The Pipe System In The Figure Is 0 86 M S Assume F 0 032 For All Pipes 2 A What Is 1 (52.99 KiB) Viewed 19 times
A P₁ P₂ P3 149 1 2 3 - D = 400 mm D = 600 mm D = 500 mm Q₁ Q2 Q3 Je B L = 400 m L = 350 m L = 420 m
