Use Fy= 200 Mpa and Fu = 420 Mpa 8mm thk plate 125 mm 25 mm O 2-6mm thk plate 1200 mm I O 1.25 m • use bolt hole dia = 2

[answerhappygod]

Use Fy 200 Mpa And Fu 420 Mpa 8mm Thk Plate 125 Mm 25 Mm O 2 6mm Thk Plate 1200 Mm I O 1 25 M Use Bolt Hole Dia 2 1 (71.41 KiB) Viewed 6 times

Use Fy 200 Mpa And Fu 420 Mpa 8mm Thk Plate 125 Mm 25 Mm O 2 6mm Thk Plate 1200 Mm I O 1 25 M Use Bolt Hole Dia 2 2 (110.12 KiB) Viewed 6 times

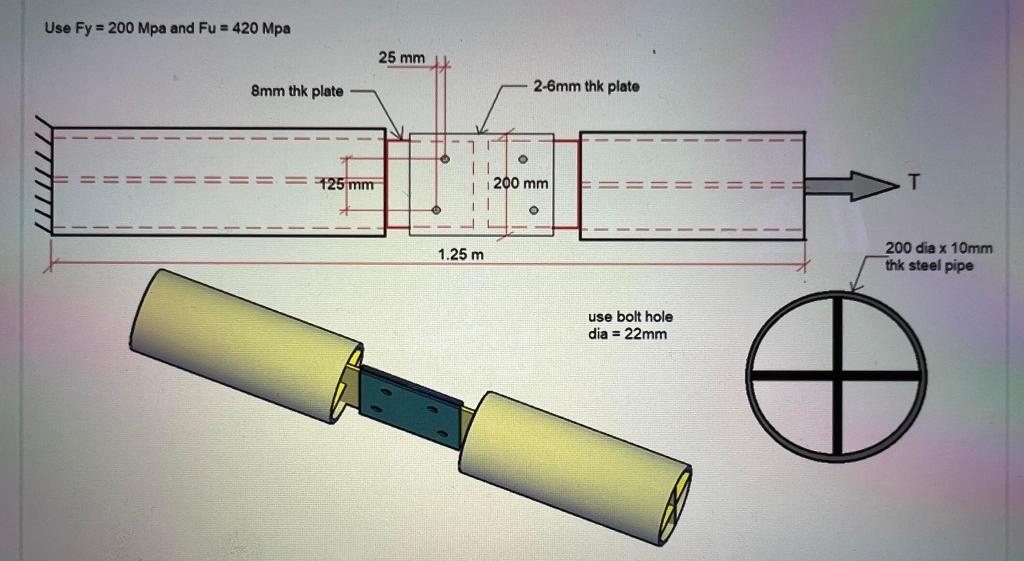

Use Fy= 200 Mpa and Fu = 420 Mpa 8mm thk plate 125 mm 25 mm O 2-6mm thk plate 1200 mm I O 1.25 m • use bolt hole dia = 22mm T 200 dia x 10mm thk steel pipe

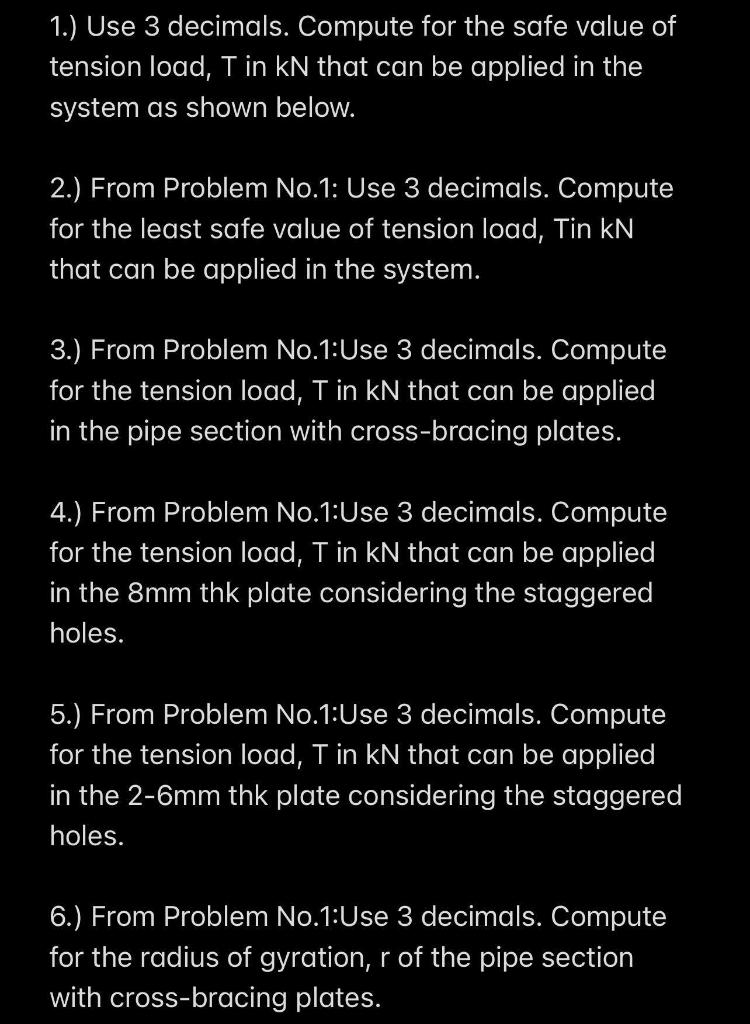

1.) Use 3 decimals. Compute for the safe value of tension load, T in kN that can be applied in the system as shown below. 2.) From Problem No.1: Use 3 decimals. Compute for the least safe value of tension load, Tin KN that can be applied in the system. 3.) From Problem No.1:Use 3 decimals. Compute for the tension load, T in kN that can be applied in the pipe section with cross-bracing plates. 4.) From Problem No.1:Use 3 decimals. Compute for the tension load, T in kN that can be applied in the 8mm thk plate considering the staggered holes. 5.) From Problem No.1:Use 3 decimals. Compute for the tension load, T in kN that can be applied in the 2-6mm thk plate considering the staggered holes. 6.) From Problem No.1:Use 3 decimals. Compute for the radius of gyration, r of the pipe section with cross-bracing plates.
