Scores: 3. Following table shows the results of direct shear test, Determine the cohesion and friction angle by calculat

Post by answerhappygod »

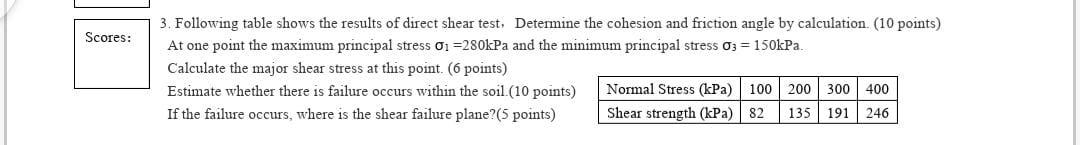

Scores 3 Following Table Shows The Results Of Direct Shear Test Determine The Cohesion And Friction Angle By Calculat 1
Scores 3 Following Table Shows The Results Of Direct Shear Test Determine The Cohesion And Friction Angle By Calculat 1 (26.34 KiB) Viewed 6 times
Scores: 3. Following table shows the results of direct shear test, Determine the cohesion and friction angle by calculation. (10 points) At one point the maximum principal stress 01 -280kPa and the minimum principal stress 03 = 150kPa. Calculate the major shear stress at this point. (6 points) Estimate whether there is failure occurs within the soil.(10 points) If the failure occurs, where is the shear failure plane? (5 points) Normal Stress (kPa) 100 200 300 400 Shear strength (kPa) 82 135 191 246
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
