Use Fy = 200 Mpa and Fu = 420 Mpa 8mm thk plate 125 mm 25 mm 1.25 m 2-6mm thk plate 200 mm O use bolt hole dia = 22mm 11

[answerhappygod]

Use Fy 200 Mpa And Fu 420 Mpa 8mm Thk Plate 125 Mm 25 Mm 1 25 M 2 6mm Thk Plate 200 Mm O Use Bolt Hole Dia 22mm 11 1 (25.08 KiB) Viewed 6 times

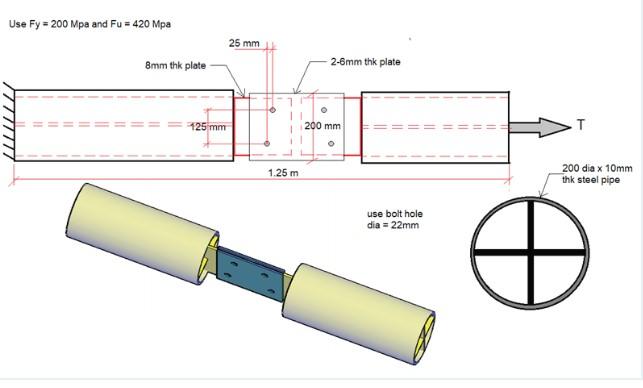

Compute for the safe value of tension load, least safe
value of tension load, the tension load that can be applied in the
pipe section with cross-bracing plates, the tension load that can
be applied in the 8mm thk plate considering the staggered holes
that can be applied in the system as shown below. pls put numbering
on the final answers thanks !
Use Fy = 200 Mpa and Fu = 420 Mpa 8mm thk plate 125 mm 25 mm 1.25 m 2-6mm thk plate 200 mm O use bolt hole dia = 22mm 11 200 dia x 10mm thk steel pipe
