Given a WT7x41. Determine the depth of the cross-section. 7.16 Determine the width of the flange. 10.1 Determine the thi

[answerhappygod]

Given A Wt7x41 Determine The Depth Of The Cross Section 7 16 Determine The Width Of The Flange 10 1 Determine The Thi 1 (45.18 KiB) Viewed 8 times

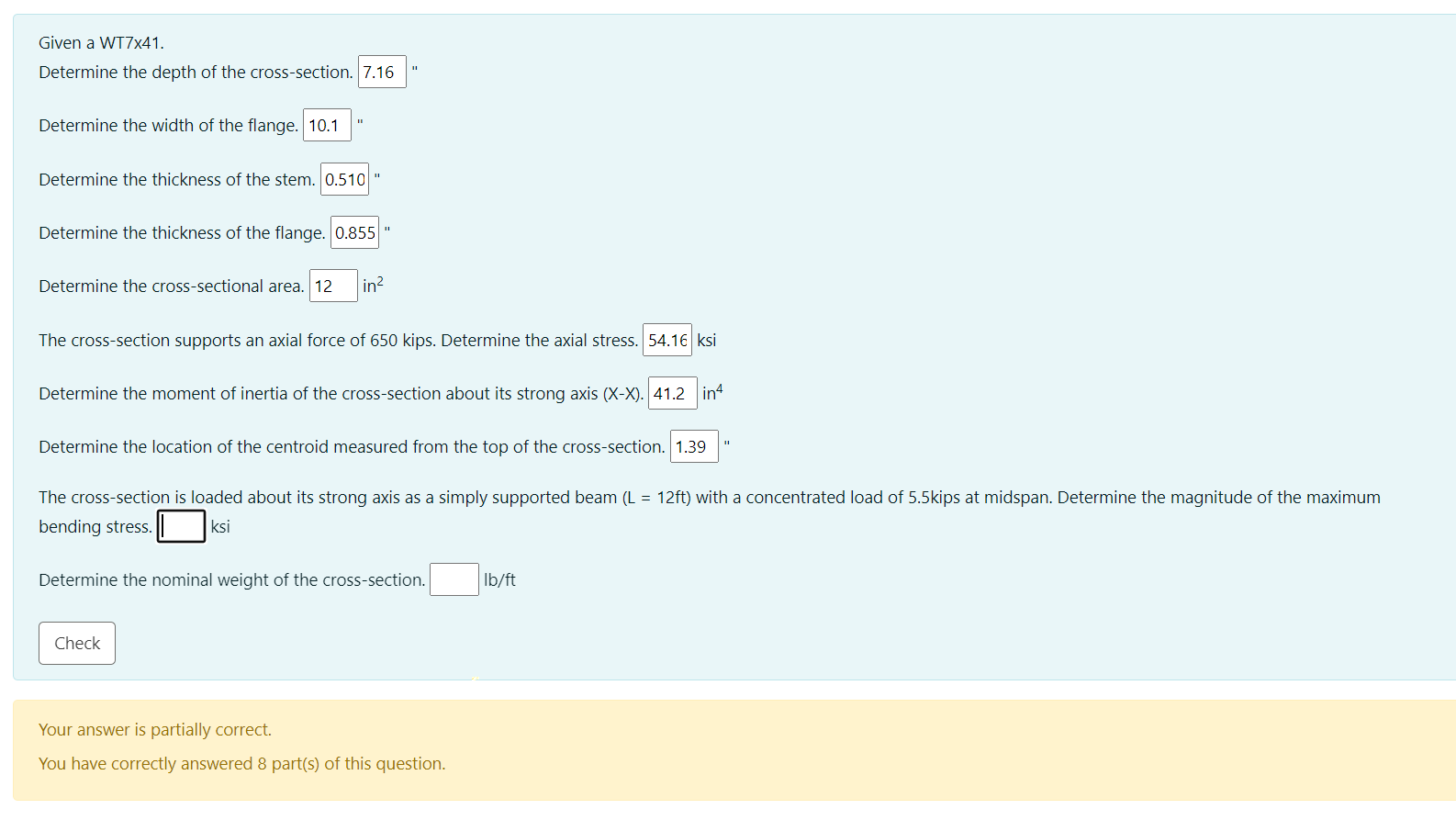

Given a WT7x41. Determine the depth of the cross-section. 7.16 Determine the width of the flange. 10.1 Determine the thickness of the stem. 0.510 Determine the thickness of the flange. 0.855" Determine the cross-sectional area. 12 in² The cross-section supports an axial force of 650 kips. Determine the axial stress. 54.16 ksi Determine the moment of inertia of the cross-section about its strong axis (X-X). 41.2 in4 Determine the location of the centroid measured from the top of the cross-section. 1.39 The cross-section is loaded about its strong axis as a simply supported beam (L = 12ft) with a concentrated load of 5.5kips at midspan. Determine the magnitude of the maximum bending stress. ksi Determine the nominal weight of the cross-section. lb/ft Check Your answer is partially correct. You have correctly answered 8 part(s) of this question.
