4. The bar shown is made of steel (E = 210 GPa) and it has a square (10 mm × 10 mm) cross section. End C is subjected to
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
4. The bar shown is made of steel (E = 210 GPa) and it has a square (10 mm × 10 mm) cross section. End C is subjected to

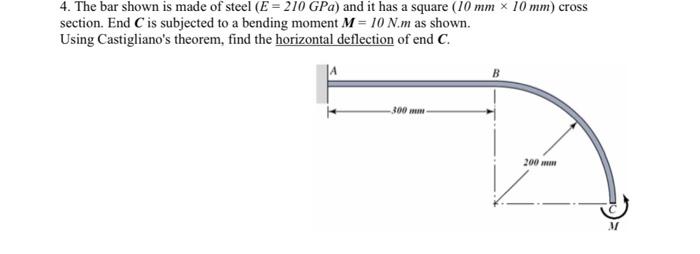

4. The bar shown is made of steel (E = 210 GPa) and it has a square (10 mm × 10 mm) cross section. End C is subjected to a bending moment M = 10 N.m as shown. Using Castigliano's theorem, find the horizontal deflection of end C. 300 mm 200 mm M
