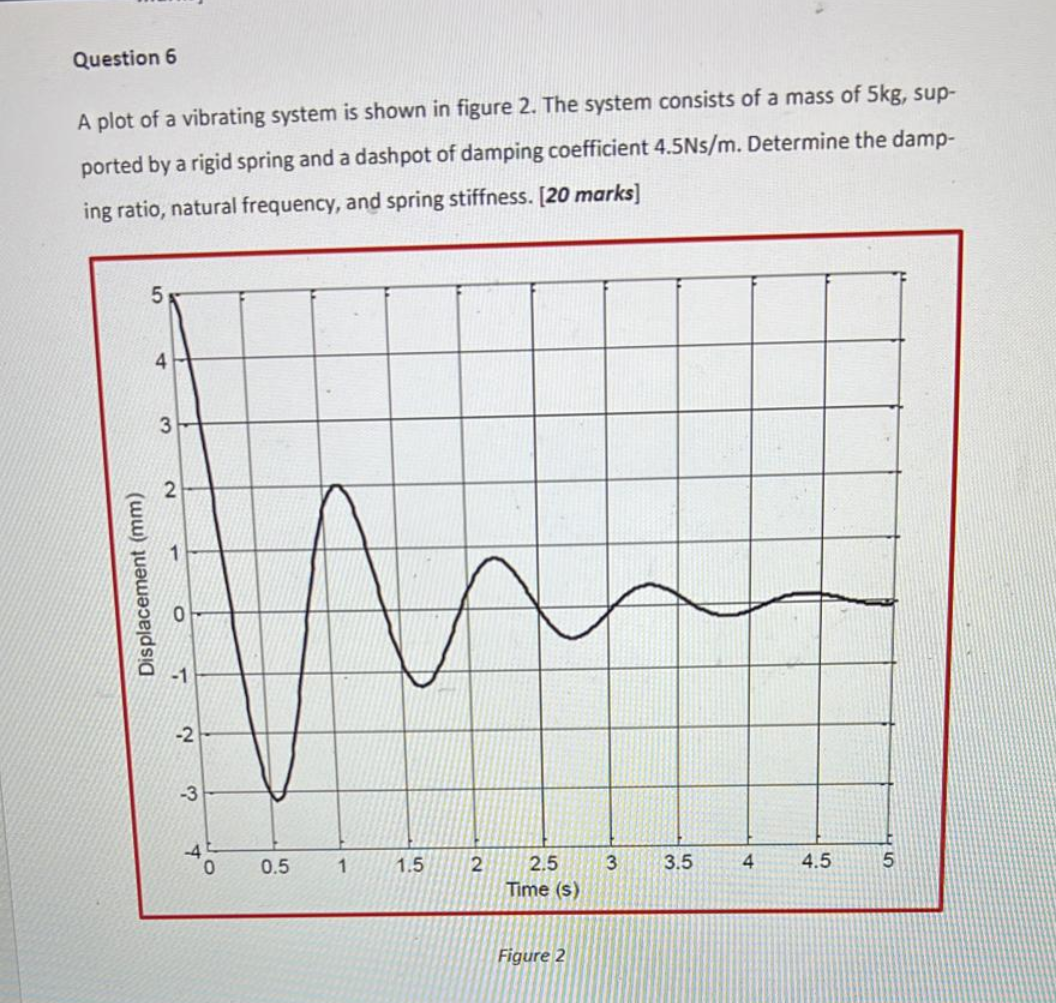

Question 6 A Plot Of A Vibrating System Is Shown In Figure 2 The System Consists Of A Mass Of 5kg Sup Ported By A Rig 1 (1.87 MiB) Viewed 7 times
please answer ASAP.
I will like solution. Question 6 A plot of a vibrating system is shown in figure 2. The system consists of a mass of 5kg, sup- ported by a rigid spring and a dashpot of damping coefficient 4.5Ns/m. Determine the damp- ing ratio, natural frequency, and spring stiffness. [20 marks] 5 3 3.5 2.5 Time (s) 4 3 N Displacement (mm) O 5 -2 -3 4 0 0.5 1 1.5 2 Figure 2 4 4.5
