Figure 1 illustrates a single-line diagram of three bus power systems. As depicted in the diagram, a 3-phase fault occur

Post by answerhappygod »

Figure 1 Illustrates A Single Line Diagram Of Three Bus Power Systems As Depicted In The Diagram A 3 Phase Fault Occur 1
Figure 1 Illustrates A Single Line Diagram Of Three Bus Power Systems As Depicted In The Diagram A 3 Phase Fault Occur 1 (28.43 KiB) Viewed 7 times

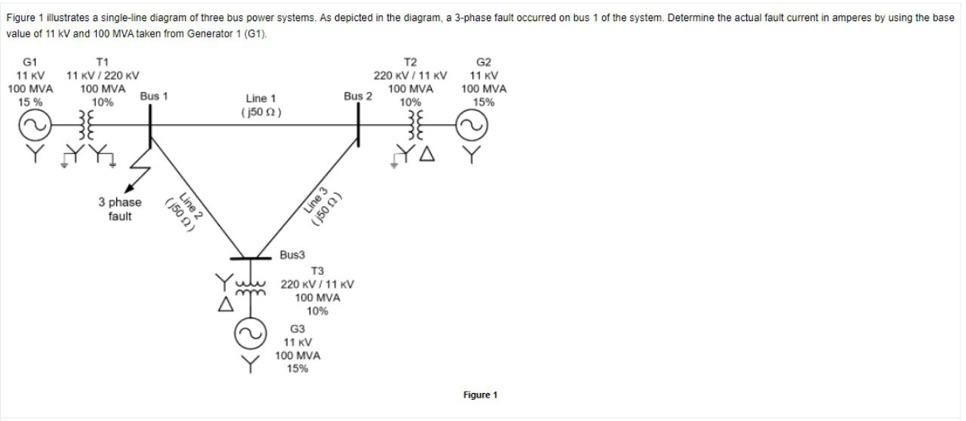

Figure 1 illustrates a single-line diagram of three bus power systems. As depicted in the diagram, a 3-phase fault occurred on bus 1 of the system. Determine the actual fault current in amperes by using the base value of 11 kV and 100 MVA taken from Generator 1 (G1). G1 T1 11 KV/220 KV 11 KV 100 MVA T2 220 kV/11 KV 100 MVA 10% 100 MVA 10% 11 KV 100 MVA 15% Bus 1 Bus 2 15% Line 1 (150 (2) Figure 1 3 phase fault 0⁰⁰ Bus3 T3 ulu 220 kV/11kV m 100 MVA 10% A Line 3 (150 (2) G3 11 KV 100 MVA 15%
