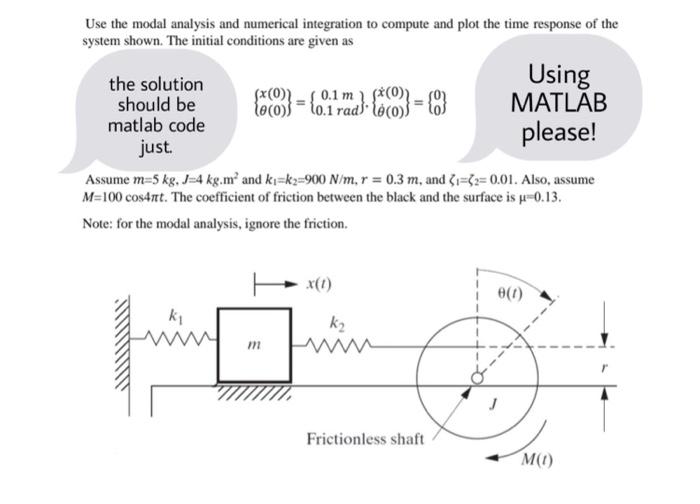

- Use The Modal Analysis And Numerical Integration To Compute And Plot The Time Response Of The System Shown The Initial 1 (32.64 KiB) Viewed 11 times
Use the modal analysis and numerical integration to compute and plot the time response of the system shown. The initial
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Use the modal analysis and numerical integration to compute and plot the time response of the system shown. The initial
Use the modal analysis and numerical integration to compute and plot the time response of the system shown. The initial conditions are given as (x)} = {0.1 rad) the solution should be matlab code } = {0,1 m ). (*(0))}) Using MATLAB please! just. Assume m-5 kg, J-4 kg.m² and ki-k2-900 N/m, r = 0.3 m, and 3₁-32=0.01. Also, assume M=100 cos4nt. The coefficient of friction between the black and the surface is µ-0.13. Note: for the modal analysis, ignore the friction. x(1) 8(1) k₁ m k₂ Frictionless shaft M(1)
