D Xi A B 0 P X1 C Y₁

Post by answerhappygod »

D Xi A B 0 P X1 C Y 1
D Xi A B 0 P X1 C Y 1 (164.31 KiB) Viewed 15 times

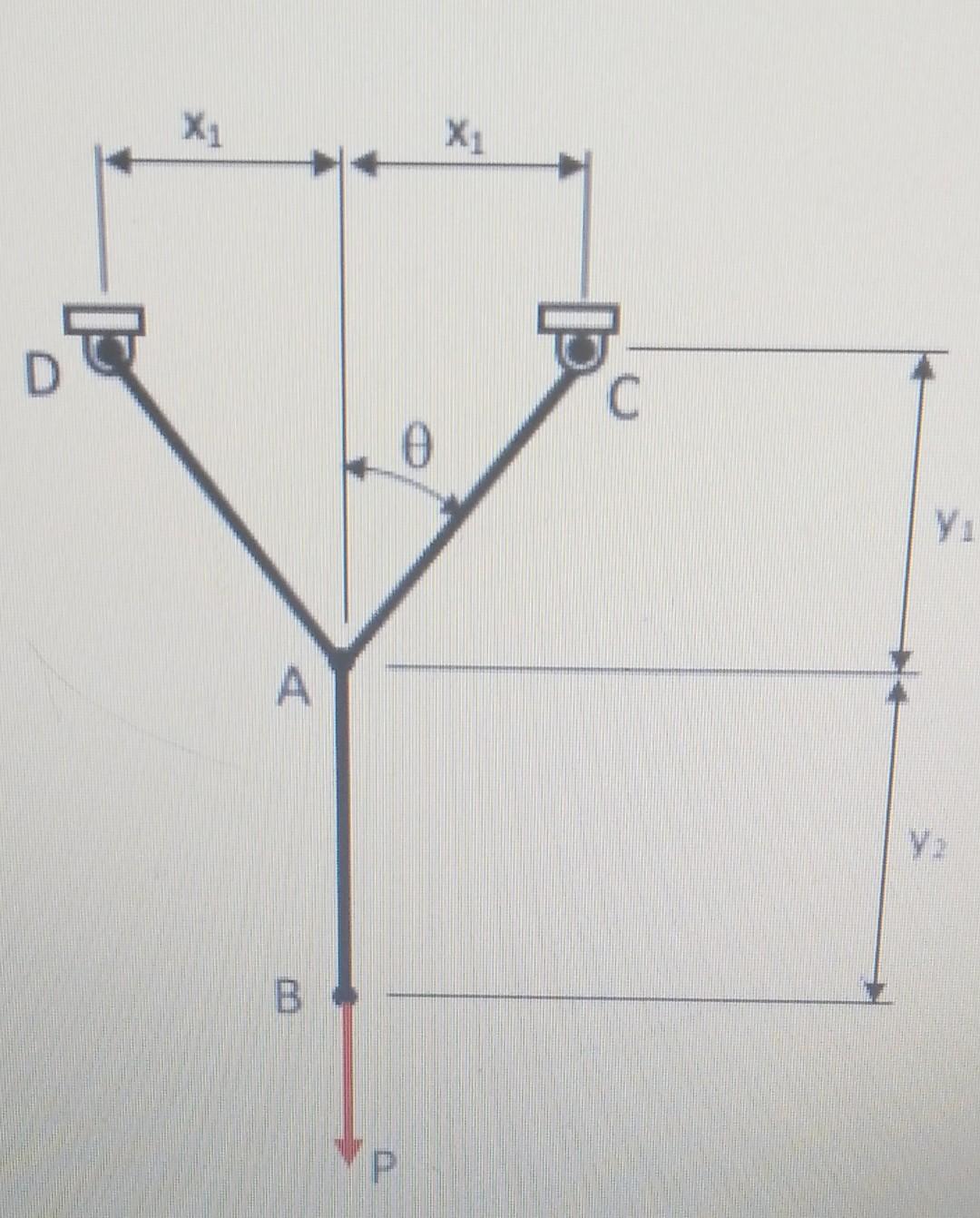

The linkage is made of three pin connected A-36 steel members(E=30MPa), each having a cross sectional area of 457mm^2. x1=929mm, y1=1194mm and y2=1849. If a vertical force P=279kN is applied to the end of B of member AB, determine:
1.The force in member DA
2.The force in member AC
D Xi A B 0 P X1 C Y₁
