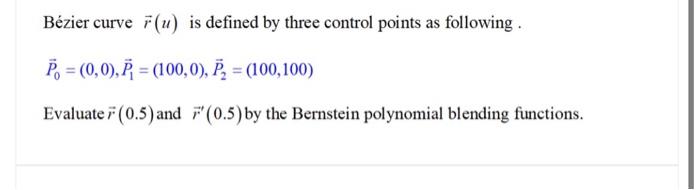

- Bezier Curve F U Is Defined By Three Control Points As Following P 0 0 P 100 0 P 100 100 Evaluate 0 5 1 (12.74 KiB) Viewed 12 times
- Bezier Curve F U Is Defined By Three Control Points As Following P 0 0 P 100 0 P 100 100 Evaluate 0 5 2 (15.94 KiB) Viewed 12 times
- Bezier Curve F U Is Defined By Three Control Points As Following P 0 0 P 100 0 P 100 100 Evaluate 0 5 3 (10.33 KiB) Viewed 12 times

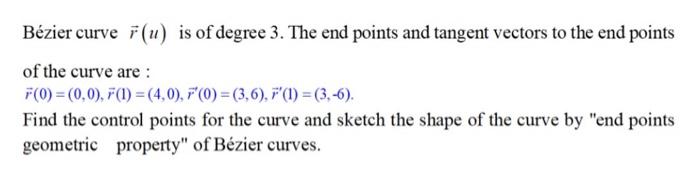

Bézier curve 7 (u) is of degree 3. The end points and tangent vectors to the end points of the curve are: F(0) = (0,0), F(1) =(4,0), 7(0) =(3,6), F'(1)=(3,-6). Find the control points for the curve and sketch the shape of the curve by "end points geometric property" of Bézier curves.

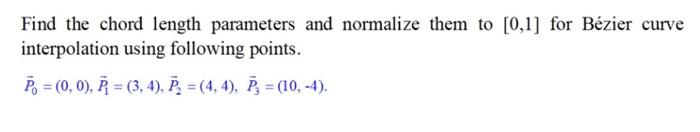

Find the chord length parameters and normalize them to [0,1] for Bézier curve interpolation using following points. P=(0, 0), P=(3, 4), P₂ =(4,4), P = (10, -4).
