(24 points) 4. The bar shown is made of steel (E = 30 ×10° psi) and it has a square cross section (0.5 in x 0.5 in). End

Post by answerhappygod »

24 Points 4 The Bar Shown Is Made Of Steel E 30 10 Psi And It Has A Square Cross Section 0 5 In X 0 5 In End 1
24 Points 4 The Bar Shown Is Made Of Steel E 30 10 Psi And It Has A Square Cross Section 0 5 In X 0 5 In End 1 (14.89 KiB) Viewed 13 times

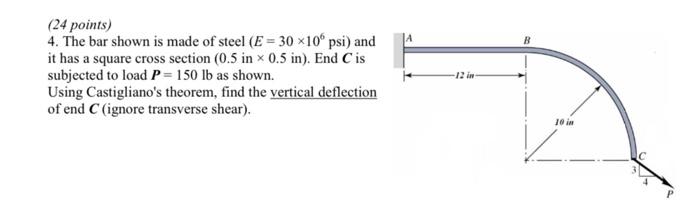

(24 points) 4. The bar shown is made of steel (E = 30 ×10° psi) and it has a square cross section (0.5 in x 0.5 in). End C is subjected to load P = 150 lb as shown. Using Castigliano's theorem, find the vertical deflection of end C (ignore transverse shear). 12 in 10 in
