A Moving to another question will save l 10 points Save Al Question 34 A cantilever of length L= 1.1 m is carrying a uni

Post by answerhappygod »

A Moving To Another Question Will Save L 10 Points Save Al Question 34 A Cantilever Of Length L 1 1 M Is Carrying A Uni 1
A Moving To Another Question Will Save L 10 Points Save Al Question 34 A Cantilever Of Length L 1 1 M Is Carrying A Uni 1 (209.6 KiB) Viewed 23 times
solve this asap

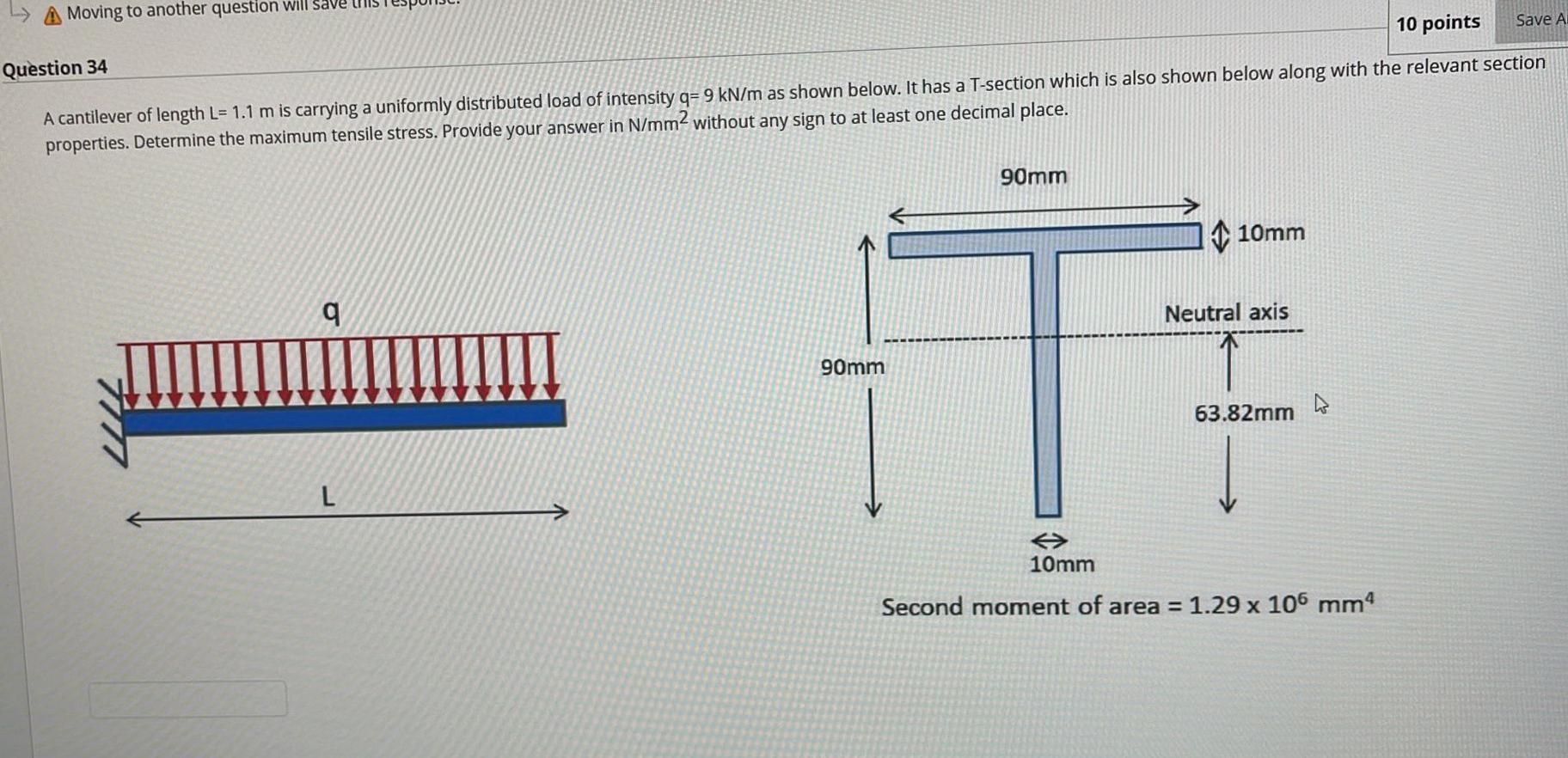

A Moving to another question will save l 10 points Save Al Question 34 A cantilever of length L= 1.1 m is carrying a uniformly distributed load of intensity q- 9 kN/m as shown below. It has a T-section which is also shown below along with the relevant section properties. Determine the maximum tensile stress. Provide your answer in N/mm² without any sign to at least one decimal place. 90mm 10mm q 90mm L Neutral axis 63.82mm 10mm Second moment of area = 1.29 x 106 mm²
