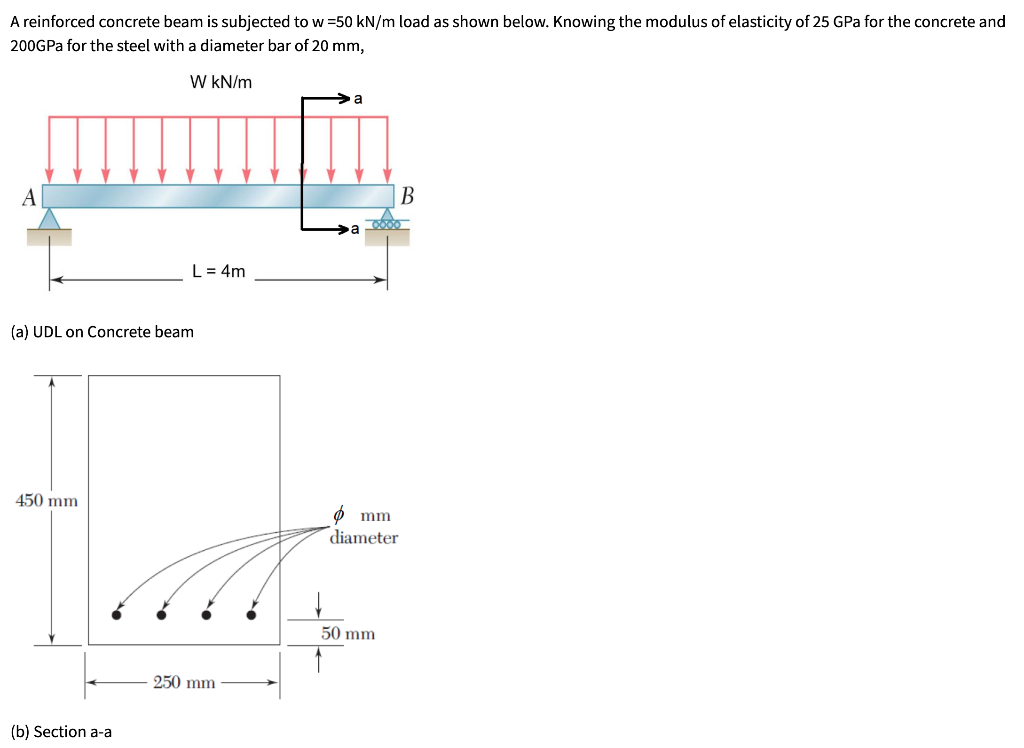

A reinforced concrete beam is subjected to w =50 kN/m load as shown below. Knowing the modulus of elasticity of 25 GPa 200GPa for the steel with a diameter bar of 20 mm, W kN/m a DO A B L = 4m (a) UDL on Concrete beam 450 mm mm diameter 50 mm (b) Section a-a 250 mm the concrete and
a) Determine the maximum bending moment kNm b) Determine the stress in the steel = MPa c) Determine the maximum stress in the concrete. O = MPa 6 s C
