A Vertical Force P Of Magnitude 5 Kn Is Applied At Point C Located On The Axis Of Symmetry Of The Cross Section Of A Sho 1 (179.24 KiB) Viewed 28 times

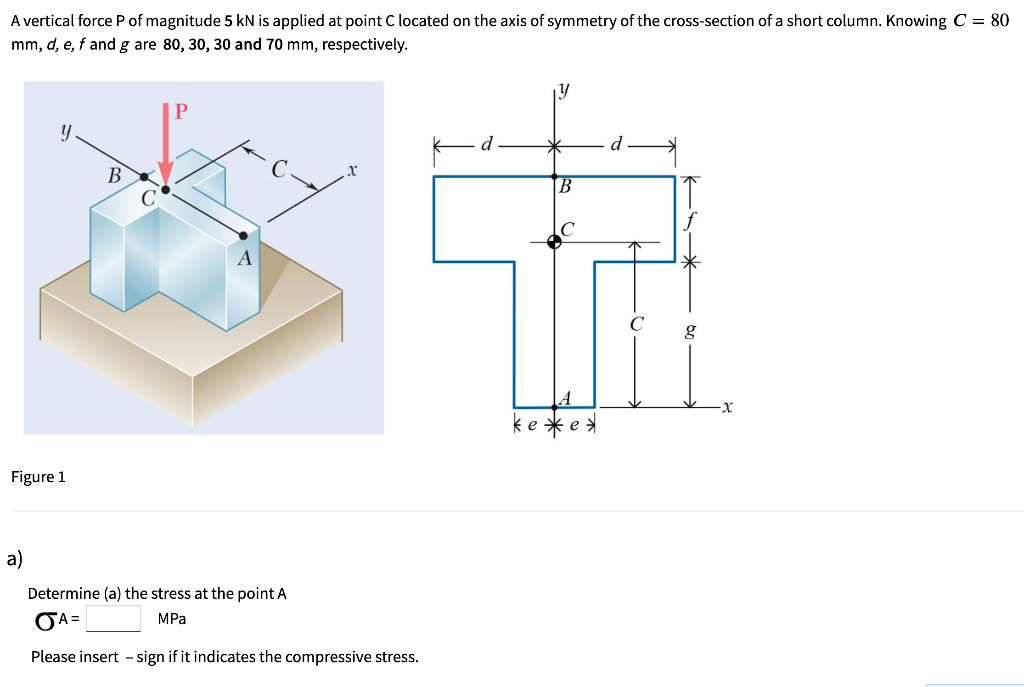

A vertical force P of magnitude 5 kN is applied at point C located on the axis of symmetry of the cross-section of a short column. Knowing C = 80 mm, d, e, f and g are 80, 30, 30 and 70 mm, respectively. y d g Figure 1 B a) Determine (a) the stress at the point A OA= MPa Please insert - sign if it indicates the compressive stress. ke *e* x
b) Determine the stress at the point B B= MPa Please insert - sign if it indicates the compressive stress. c) Determine the location of the neutral axis where the stress is equal to zero from point A. mm above point A.
