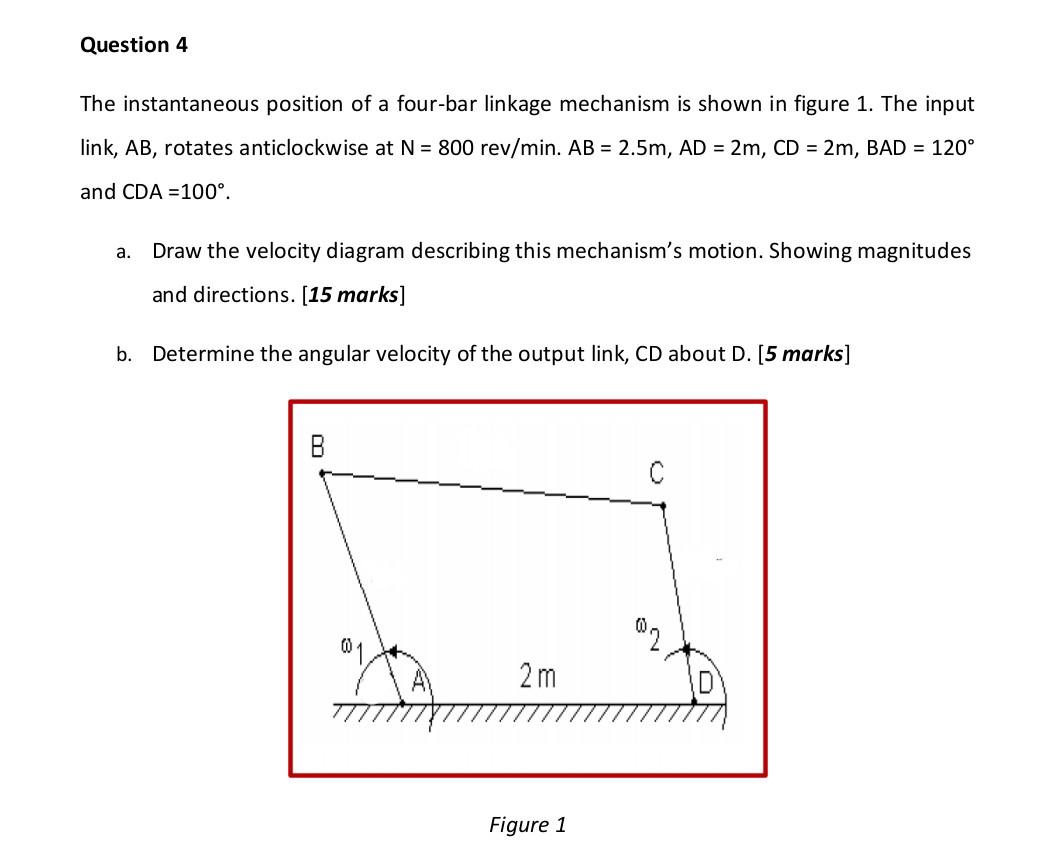

Question 4 The Instantaneous Position Of A Four Bar Linkage Mechanism Is Shown In Figure 1 The Input Link Ab Rotates 1 (66.27 KiB) Viewed 14 times
solve this asap please Question 4 The instantaneous position of a four-bar linkage mechanism is shown in figure 1. The input link, AB, rotates anticlockwise at N = 800 rev/min. AB = 2.5m, AD = 2m, CD = 2m, BAD = 120° and CDA 100°. a. Draw the velocity diagram describing this mechanism's motion. Showing magnitudes and directions. [15 marks] b. Determine the angular velocity of the output link, CD about D. [5 marks] 8 @2 2m Figure 1
