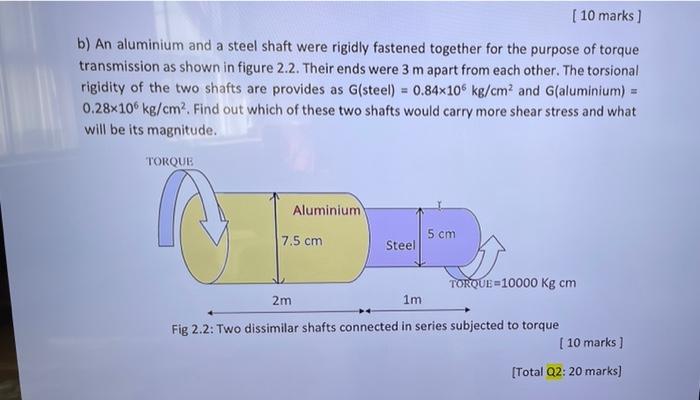

10 Marks B An Aluminium And A Steel Shaft Were Rigidly Fastened Together For The Purpose Of Torque Transmission As Sh 1 (32.61 KiB) Viewed 17 times

[10 marks] b) An aluminium and a steel shaft were rigidly fastened together for the purpose of torque transmission as shown in figure 2.2. Their ends were 3 m apart from each other. The torsional rigidity of the two shafts are provides as G(steel) = 0.84x106 kg/cm² and G(aluminium) = 0.28x106 kg/cm2. Find out which of these two shafts would carry more shear stress and what will be its magnitude. TORQUE Aluminium 5 cm TORQUE=10000 Kg cm 2m 1m Fig 2.2: Two dissimilar shafts connected in series subjected to torque 7.5 cm Steel [10 marks] [Total Q2: 20 marks]
