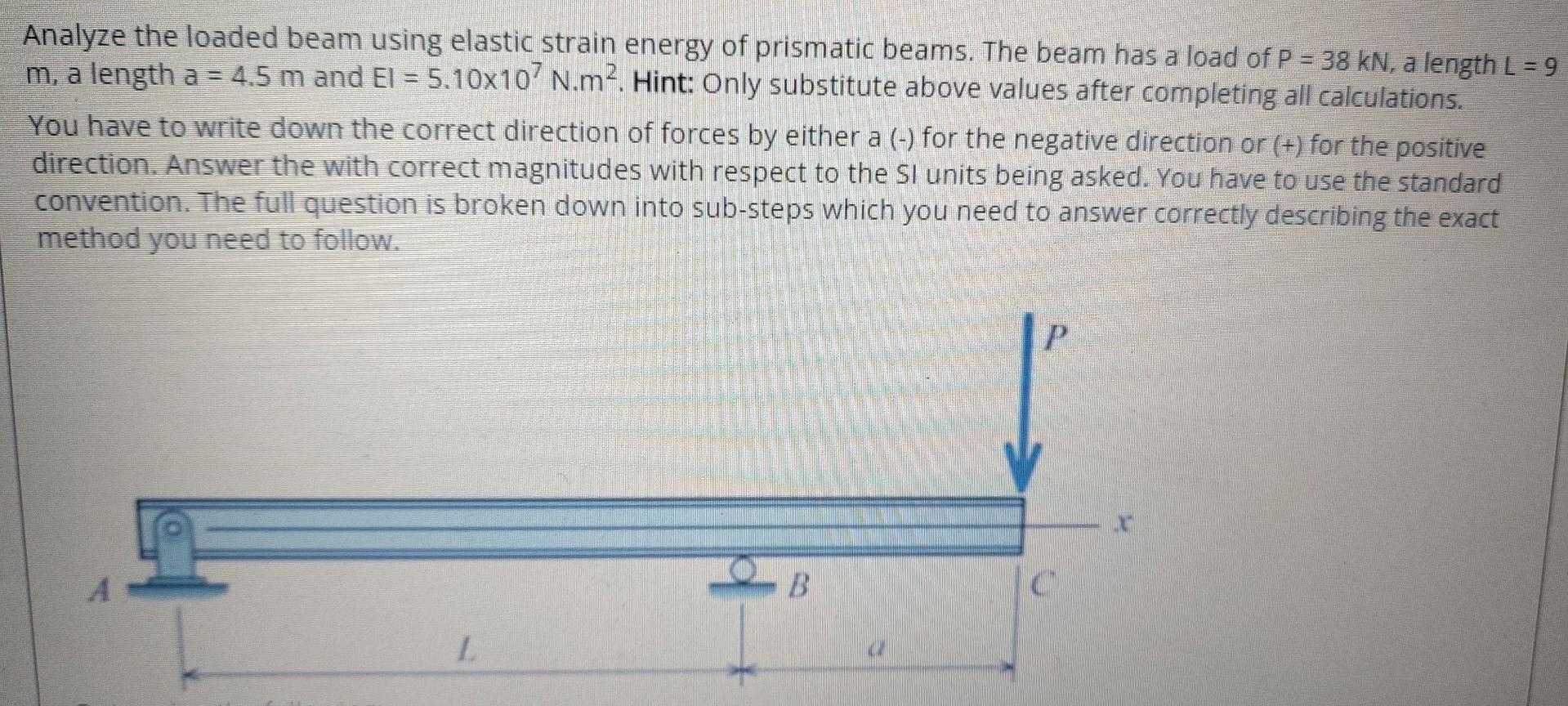

Analyze the loaded beam using elastic strain energy of prismatic beams. The beam has a load of P = 38 kN, a length L = 9 m, a length a = 4.5 m and El = 5.10x107 N.m². Hint: Only substitute above values after completing all calculations. You have to write down the correct direction of forces by either a (-) for the negative direction or (+) for the positive direction. Answer the with correct magnitudes with respect to the SI units being asked. You have to use the standard convention. The full question is broken down into sub-steps which you need to answer correctly describing the exact method you need to follow. P B L C

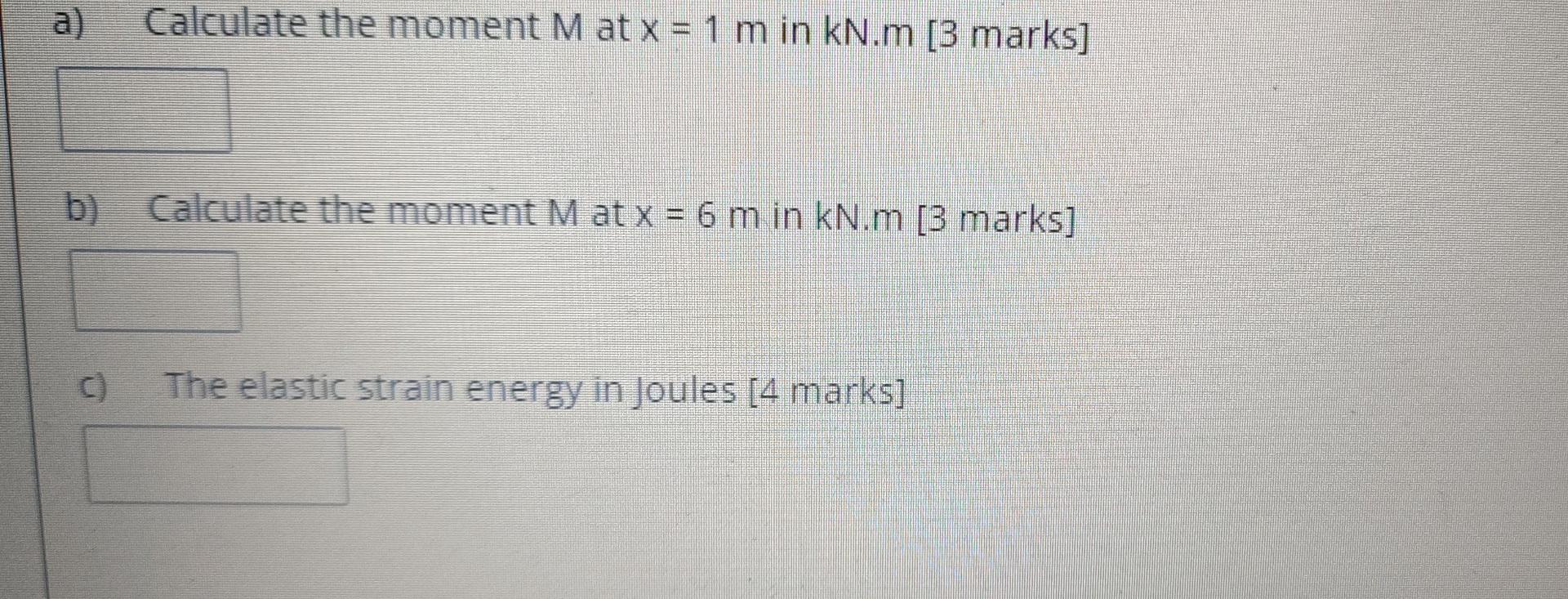

Calculate the moment M at x = 1 m in kN.m [3 marks] Calculate the moment M at x = 6 m in kN.m [3 marks] C) The elastic strain energy in Joules [4 marks] a)
