Number 1 A The Transfer Function G S For A First Order System Is Given Below Pick One According To The Table Find Ga 1 (20.69 KiB) Viewed 9 times
Number 1 A The Transfer Function G S For A First Order System Is Given Below Pick One According To The Table Find Ga 2 (21.85 KiB) Viewed 9 times

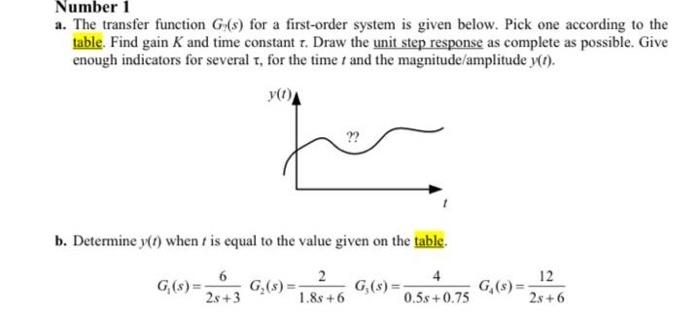

Number 1 a. The transfer function G(s) for a first-order system is given below. Pick one according to the table. Find gain K and time constant r. Draw the unit step response as complete as possible. Give enough indicators for several t, for the time and the magnitude/amplitude y(t). y(t) Jer b. Determine y(t) when t is equal to the value given on the table. G₁(s)=- 6 2s+3 G₂(s) = 2 1.8s +6 G₁(s) = 4 0.5s+0.75 12 2s+6 G₁(s)=

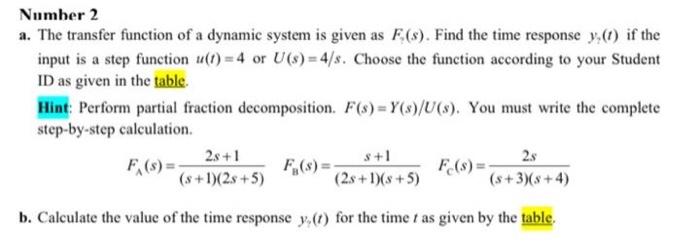

Number 2 a. The transfer function of a dynamic system is given as F.(s). Find the time response y.(t) if the input is a step function u(t)=4 or U(s)=4/s. Choose the function according to your Student ID as given in the table. Hint: Perform partial fraction decomposition. F(s)=Y(s)/U(s). You must write the complete step-by-step calculation. 28+1 F₁(s)= 2s F₁(s)= s+1 (2s+1)(8+5) F(s)=- (s+1)(2s+5) (s+3)(x+4) b. Calculate the value of the time response y(t) for the time t as given by the table.
