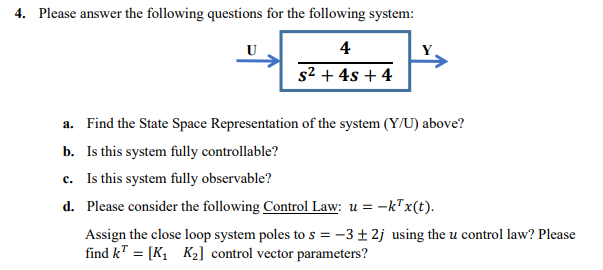

- 4 Please Answer The Following Questions For The Following System 4 S 4s 4 A Find The State Space Representation 1 (39.34 KiB) Viewed 11 times
4. Please answer the following questions for the following system: 4 s² + 4s + 4 a. Find the State Space Representation
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
4. Please answer the following questions for the following system: 4 s² + 4s + 4 a. Find the State Space Representation
4. Please answer the following questions for the following system: 4 s² + 4s + 4 a. Find the State Space Representation of the system (Y/U) above? b. Is this system fully controllable? observable? c. Is this system fully d. Please consider the following Control Law: u = -k¹x(t). Assign the close loop system poles to s = −3+2j using the u control law? Please find k¹= [K₁ K₂] control vector parameters?
