Draw energy bands of metal/SiO2/p-Si and metal/SiO₂/n-Si MOS capacitors at threshold condition (Ps = 20fp or -Ps= 20m).

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Draw energy bands of metal/SiO2/p-Si and metal/SiO₂/n-Si MOS capacitors at threshold condition (Ps = 20fp or -Ps= 20m).

Post by answerhappygod »

Draw Energy Bands Of Metal Sio2 P Si And Metal Sio N Si Mos Capacitors At Threshold Condition Ps 20fp Or Ps 20m 1
Draw Energy Bands Of Metal Sio2 P Si And Metal Sio N Si Mos Capacitors At Threshold Condition Ps 20fp Or Ps 20m 1 (41.4 KiB) Viewed 28 times

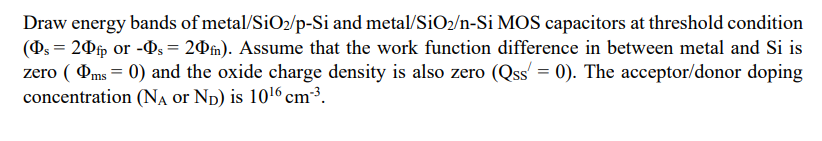

Draw energy bands of metal/SiO2/p-Si and metal/SiO₂/n-Si MOS capacitors at threshold condition (Ps = 20fp or -Ps= 20m). Assume that the work function difference in between metal and Si is zero (Pms = 0) and the oxide charge density is also zero (Qss' = 0). The acceptor/donor doping concentration (NA or ND) is 10¹6 cm³³.
