Question 3 Consider The Step Down Transformer Circuit Below With The Following Values V P 291 Volts Rms N P 211 T 1 (36.06 KiB) Viewed 17 times
Question 3 Consider The Step Down Transformer Circuit Below With The Following Values V P 291 Volts Rms N P 211 T 2 (34.98 KiB) Viewed 17 times

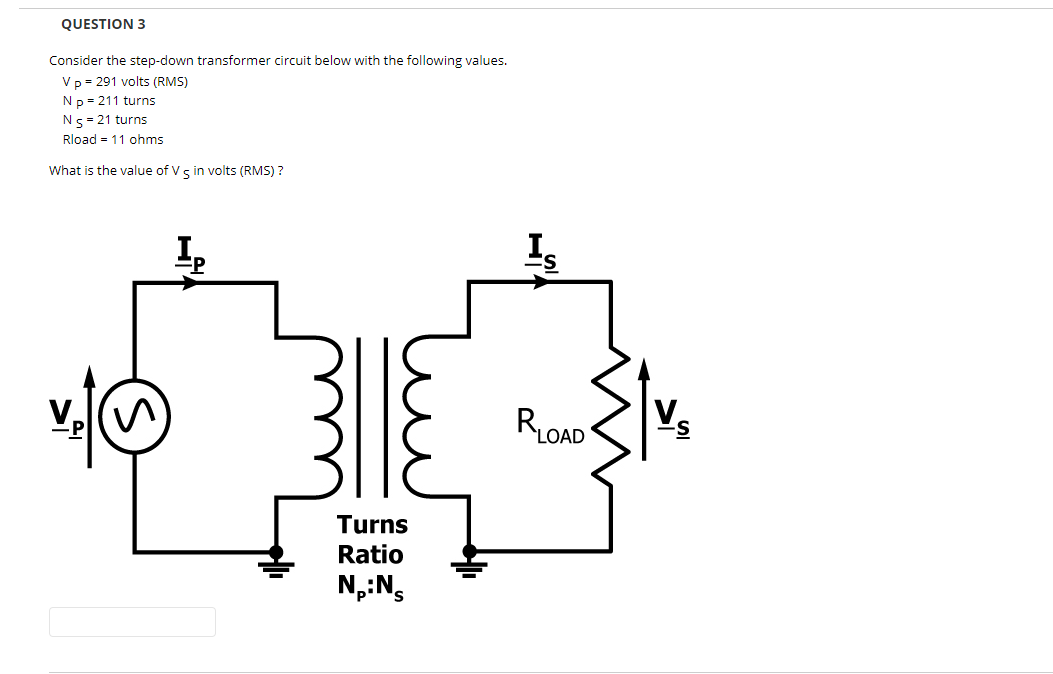

QUESTION 3 Consider the step-down transformer circuit below with the following values. V p = 291 volts (RMS) N p = 211 turns N5 = 21 turns Rload 11 ohms What is the value of V 5 in volts (RMS)? Ip n Turns Ratio N₁:N Is RLOAD

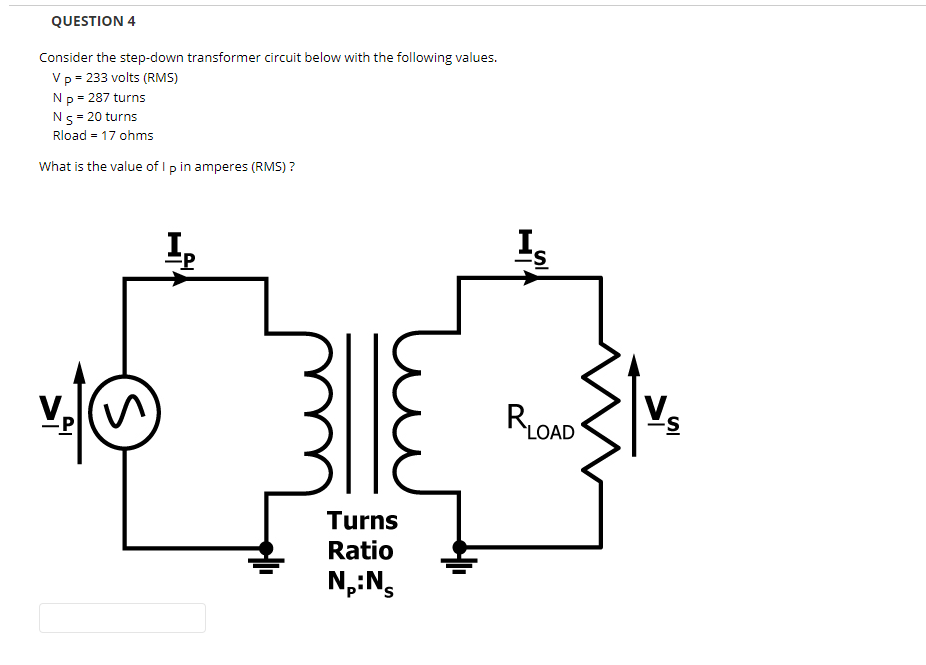

QUESTION 4 Consider the step-down transformer circuit below with the following values. V p = 233 volts (RMS) N p = 287 turns N 5 = 20 turns Rload = 17 ohms What is the value of I p in amperes (RMS)? =P -P S zu ||E Turns Ratio N₁: Ns Is LOAD V. -S
