QUESTION 1 Consider the following circuit consisting of a voltage source driving a load with resistive and reactive comp

Post by answerhappygod »

Question 1 Consider The Following Circuit Consisting Of A Voltage Source Driving A Load With Resistive And Reactive Comp 1
Question 1 Consider The Following Circuit Consisting Of A Voltage Source Driving A Load With Resistive And Reactive Comp 1 (18.48 KiB) Viewed 23 times

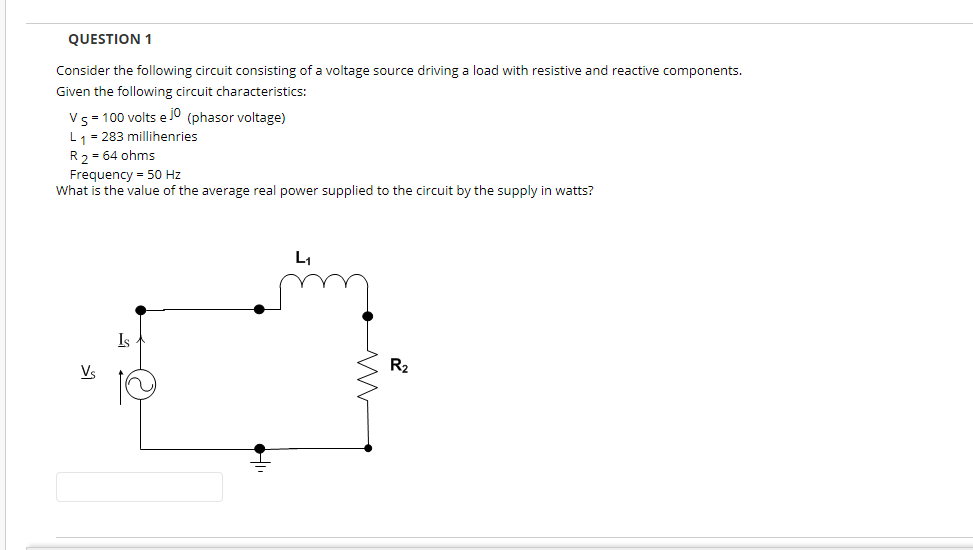

QUESTION 1 Consider the following circuit consisting of a voltage source driving a load with resistive and reactive components. Given the following circuit characteristics: Vs = 100 volts e jo (phasor voltage) L1 = 283 millihenries R2 = 64 ohms Frequency 50 Hz What is the value of the average real power supplied to the circuit the supply in watts? L₁ Is Vs R₂
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
