Design a circuit that can do the following operation where a, b, and c any scalar (that can be both positive and negativ

[answerhappygod]

Design A Circuit That Can Do The Following Operation Where A B And C Any Scalar That Can Be Both Positive And Negativ 1 (100.59 KiB) Viewed 19 times

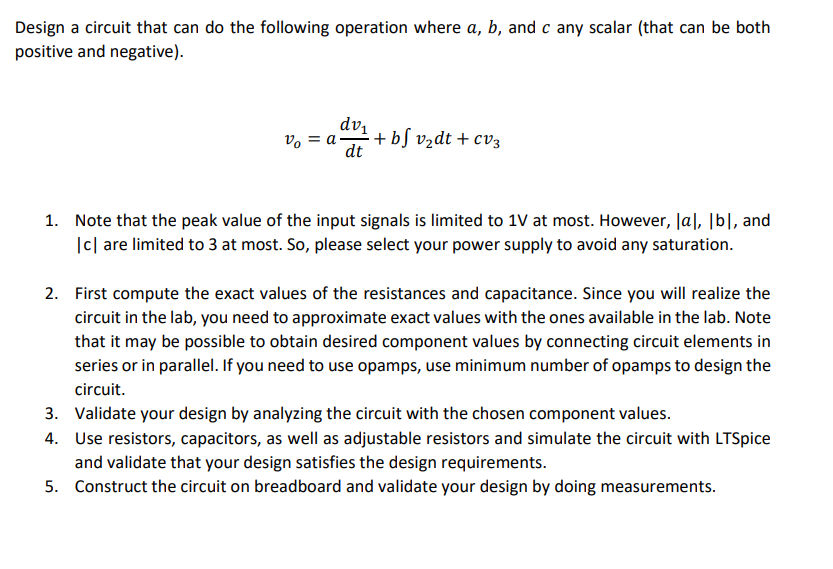

Design a circuit that can do the following operation where a, b, and c any scalar (that can be both positive and negative). % = a dv₁ dt =+bf v₂dt + cv3 1. Note that the peak value of the input signals is limited to 1V at most. However, lal, bl, and Ic❘ are limited to 3 at most. So, please select your power supply to avoid any saturation. 2. First compute the exact values of the resistances and capacitance. Since you will realize the circuit in the lab, you need to approximate exact values with the ones available in the lab. Note that it may be possible to obtain desired component values by connecting circuit elements in series or in parallel. If you need to use opamps, use minimum number of opamps to design the circuit. 3. Validate your design by analyzing the circuit with the chosen component values. 4. Use resistors, capacitors, as well as adjustable resistors and simulate the circuit with LTSpice and validate that your design satisfies the design requirements. 5. Construct the circuit on breadboard and validate your design by doing measurements.
