QUESTIONS 1- In figure 1, nominal representation for medium length lines is given. Is IR Z=R+IX wwwroo IL Vs Y VR 2 Fig.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

QUESTIONS 1- In figure 1, nominal representation for medium length lines is given. Is IR Z=R+IX wwwroo IL Vs Y VR 2 Fig.

Post by answerhappygod »

Questions 1 In Figure 1 Nominal Representation For Medium Length Lines Is Given Is Ir Z R Ix Wwwroo Il Vs Y Vr 2 Fig 1
Questions 1 In Figure 1 Nominal Representation For Medium Length Lines Is Given Is Ir Z R Ix Wwwroo Il Vs Y Vr 2 Fig 1 (33.91 KiB) Viewed 12 times

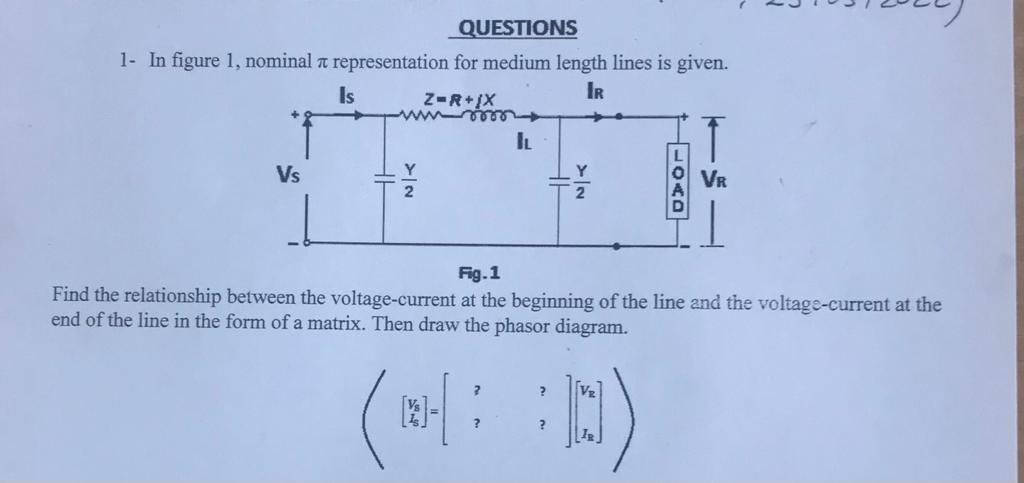

QUESTIONS 1- In figure 1, nominal representation for medium length lines is given. Is IR Z=R+IX wwwroo IL Vs Y VR 2 Fig.1 Find the relationship between the voltage-current at the end of the line in the form of a matrix. Then draw the phasor diagram. beginning of the line and the voltage-current at the :) HF HE LOAD N Y
