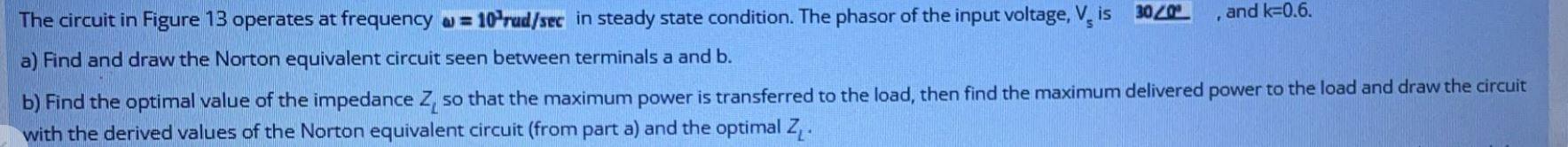

The circuit in Figure 13 operates at frequency = 10 rud/sec in steady state condition. The phasor of the input voltage, V, is 30/09 and k=0.6. a) Find and draw the Norton equivalent circuit seen between terminals a and b. b) Find the optimal value of the impedance Z, so that the maximum power is transferred to the load, then find the maximum delivered power to the load and draw the circuit with the derived values of the Norton equivalent circuit (from part a) and the optimal Z₁.

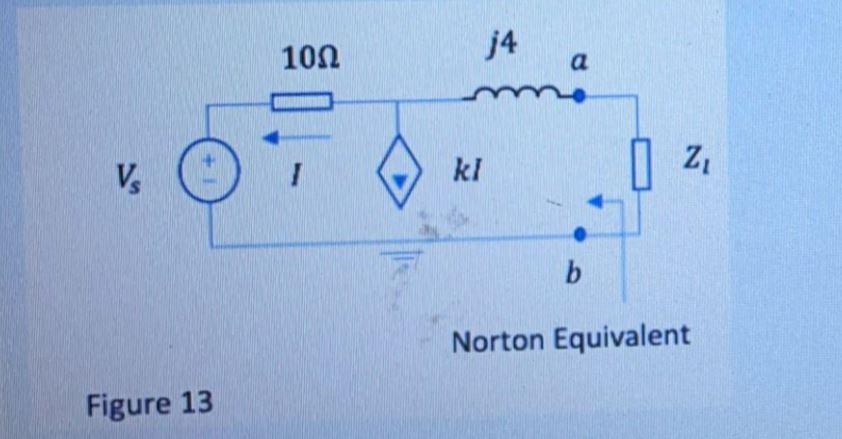

Vs Figure 13 108 01- j4 a kl Z₁ b Norton Equivalent
