9- For the transistors in the circuit shown in Fig.9, B = 100. Find the voltages at all nodes, the currents in all branc
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
9- For the transistors in the circuit shown in Fig.9, B = 100. Find the voltages at all nodes, the currents in all branc

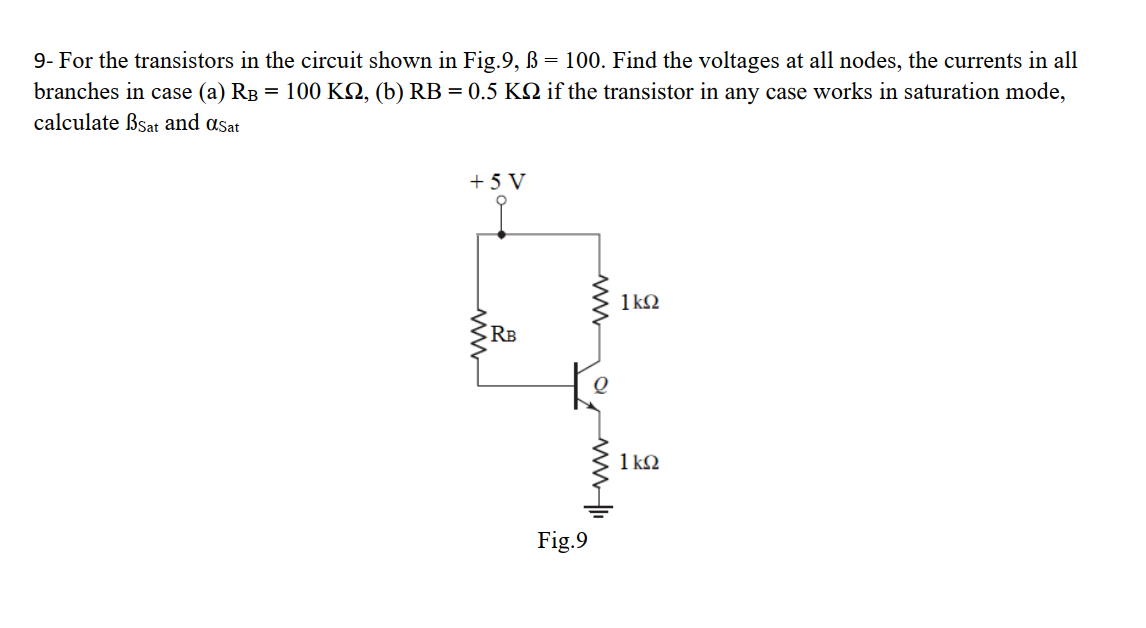

9- For the transistors in the circuit shown in Fig.9, B = 100. Find the voltages at all nodes, the currents in all branches in case (a) R³ = 100 KQ, (b) RB = 0.5 KQ if the transistor in any case works in saturation mode, calculate Bsat and asat +5V RB www aw Fig.9 1kQ2 1 k
