[10 pts] (7) In the circuit shown in Figure MT1-7, LED1 is blue with 3.45 V at 20 mA and LED2 is red with 1.83 V at 20 m

Post by answerhappygod »

10 Pts 7 In The Circuit Shown In Figure Mt1 7 Led1 Is Blue With 3 45 V At 20 Ma And Led2 Is Red With 1 83 V At 20 M 1
10 Pts 7 In The Circuit Shown In Figure Mt1 7 Led1 Is Blue With 3 45 V At 20 Ma And Led2 Is Red With 1 83 V At 20 M 1 (87.21 KiB) Viewed 15 times

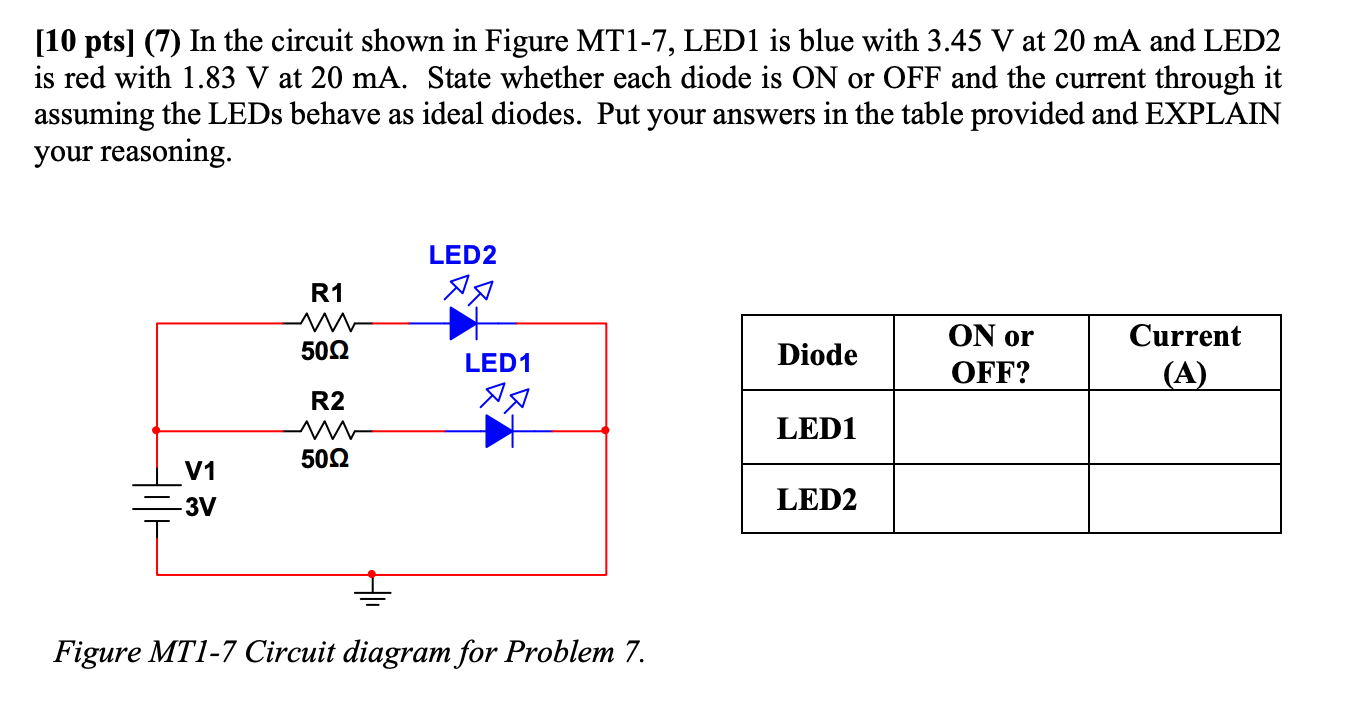

[10 pts] (7) In the circuit shown in Figure MT1-7, LED1 is blue with 3.45 V at 20 mA and LED2 is red with 1.83 V at 20 mA. State whether each diode is ON or OFF and the current through it assuming the LEDs behave as ideal diodes. Put your answers in the table provided and EXPLAIN your reasoning. LED2 Ax R1 ON or 50Ω Diode Current (A) OFF? R2 LED1 50Ω V1 LED2 - 3V Figure MT1-7 Circuit diagram for Problem 7. LED1 仅仅
