- 9 3 What Are The Voltages At Vci And Vc2 In The Circuit In Fig 9 90 For V 1 6 V Iee 5 0 Ma Rc 350 2 And Vre 1 (13.73 KiB) Viewed 14 times
- 9 3 What Are The Voltages At Vci And Vc2 In The Circuit In Fig 9 90 For V 1 6 V Iee 5 0 Ma Rc 350 2 And Vre 2 (20.55 KiB) Viewed 14 times

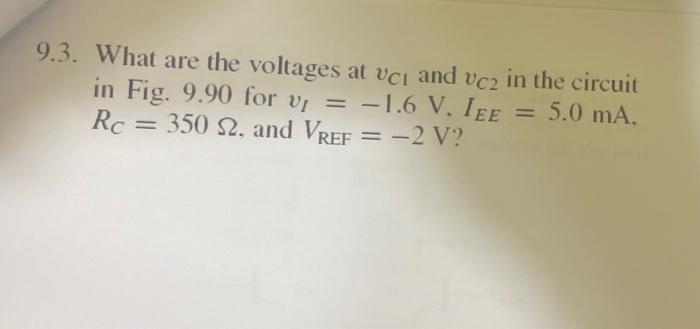

9.3. What are the voltages at vci and vc2 in the circuit in Fig. 9.90 for v₁ = -1.6 V, IEE = 5.0 mA, Rc = 350 2, and VREF = -2 V?

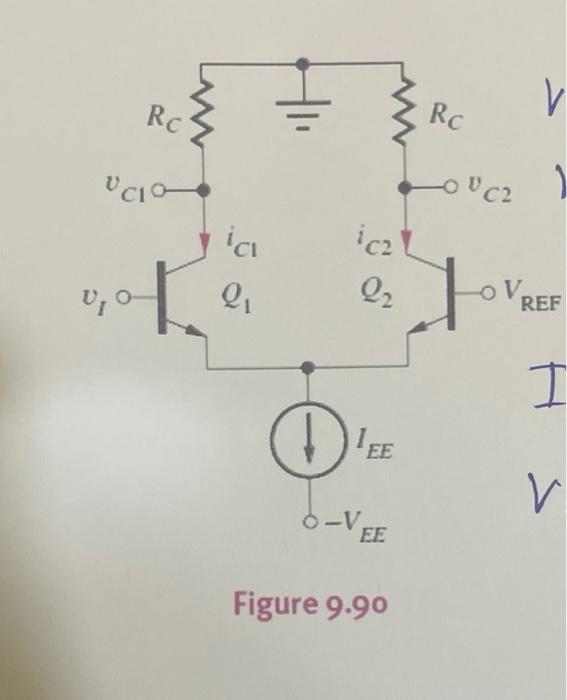

Rc UCIO ic 2₁ icz 2₂ DIEE -V. EE Figure 9.90 Rc OUC2 Lov V. V REF I V
