- I Want Answers For C Design And D Result 1 (80.04 KiB) Viewed 10 times

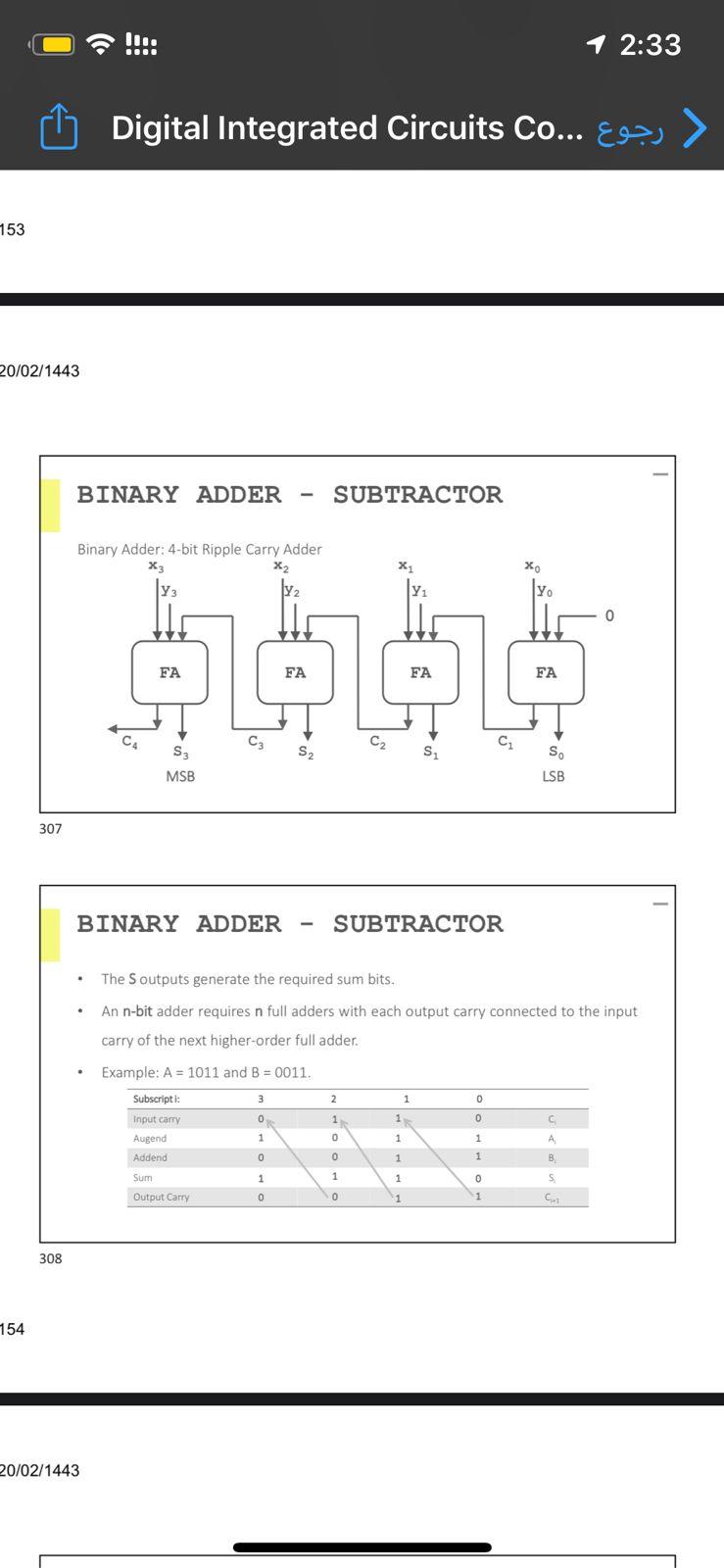

2:34 Digital Integrated Circuits Co... > 20/02/1443 BINARY ADDER SUBTRACTOR Binary Adder: 4-bit Ripple Carry Adder 1 0 0 3546 FA FA FA FA 0 0 1 1 1 MSB 0 LSB 309 BINARY ADDER SUBTRACTOR Carry propagation . The addition of two binary numbers in parallel implies that all the bits of the augend and addend are available at the same time. Signals must propagate through the gates before the correct output sum is available in the output terminals. The total propagation time = propagation delay of a typical gate x the number of gate levels in the circuit. Longest propagation delay time in an adder is the time it takes the carry to propagate through the full adders. BINARY ADDER SUBTRACTOR Carry propagation • Since each bit of the sum output depends on the value of the input carry, the value of S, in any given stage in the adder will in its steady state final value only after the input carry to that stage has been propagated. 310 155 20/02/1443
رجوع pdf.نموذج التقرير - Tagged ( رجوع Cover and Table of Contents A 1 Cover 2 Table of Contents B Introduction: 1 The goal of the Project 2 Overview of the Project 3 Project Picture C Design: 1 SUM and Carry out truth table 2 SUM K-map 3 SUM equation 4 Carry out K-map 5 Carry out equation D Results: 1 CMOS FAI Schematic and Simulation 2 CMOS FA2 Schematic and Simulation 3 CMOS FA3 Schematic and Simulation 4 CMOS FA4 Schematic and Simulation E Conclusion: 1 What did you gain from the Project? 2 What do you think about the Project? F Project overview: 1 General overview 2 Working on the program 3 Teamwork 4 Project Evaluation Elements sheet TOTAL 1 2:40 5 2 1 1 3 1 1 1 5 1 1 1 1 1 4 1 1 1 1 2 1 1 4 1 1 1 1 20
