Question: For the power system given in Problem 4.1, write the three power-flow equations to be solved by the Newton-Rap

[answerhappygod]

Question For The Power System Given In Problem 4 1 Write The Three Power Flow Equations To Be Solved By The Newton Rap 1 (61.52 KiB) Viewed 10 times

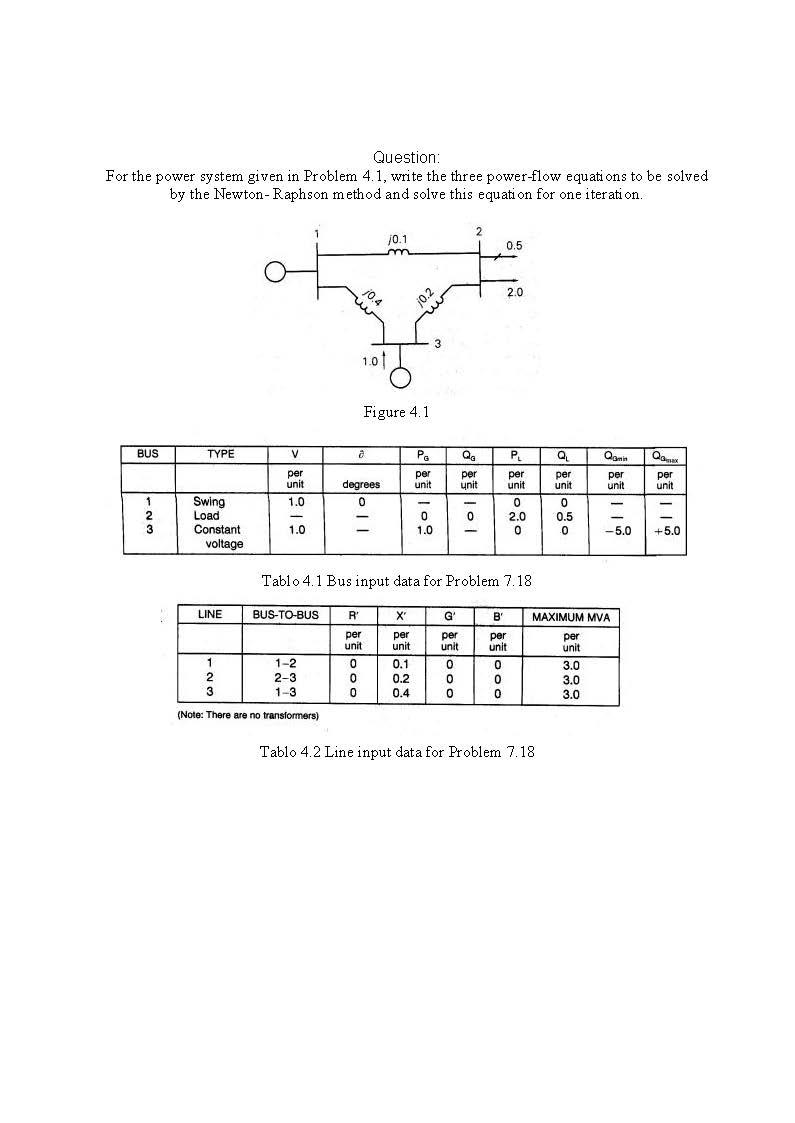

Question: For the power system given in Problem 4.1, write the three power-flow equations to be solved by the Newton-Raphson method and solve this equation for one iteration. 2 10.1 0.5 2.0 1.01 Figure 4.1 BUS TYPE V 8 Pa PL Qomin Qama per per per per per unit degrees unit unit unit unit 1 Swing 1.0 0 - 0 - 2 0 2.0 - Load Constant voltage 1.0 - 1.0 0 -5.0 +5.0 Tablo 4.1 Bus input data for Problem 7.18 LINE BUS-TO-BUS R' X' G' B' per per per per unit unit unit unit 1 1-2 0 0.1 0 2 2-3 0.2 0 3 1-3 0 0.4 0 (Note: There are no transformers) Tablo 4.2 Line input data for Problem 7.18 WN 3 m 10.4 j0.2 3 À ... QG per unit 101 Q per unit 0 0.5 0 MAXIMUM MVA per unit 3.0 3.0 3.0
