1. For the circuit below( a BJT multistage amplifier) draw and AC equivalent circuit. Find the gain in the mid-band usin

[answerhappygod]

1 For The Circuit Below A Bjt Multistage Amplifier Draw And Ac Equivalent Circuit Find The Gain In The Mid Band Usin 1 (86.87 KiB) Viewed 11 times

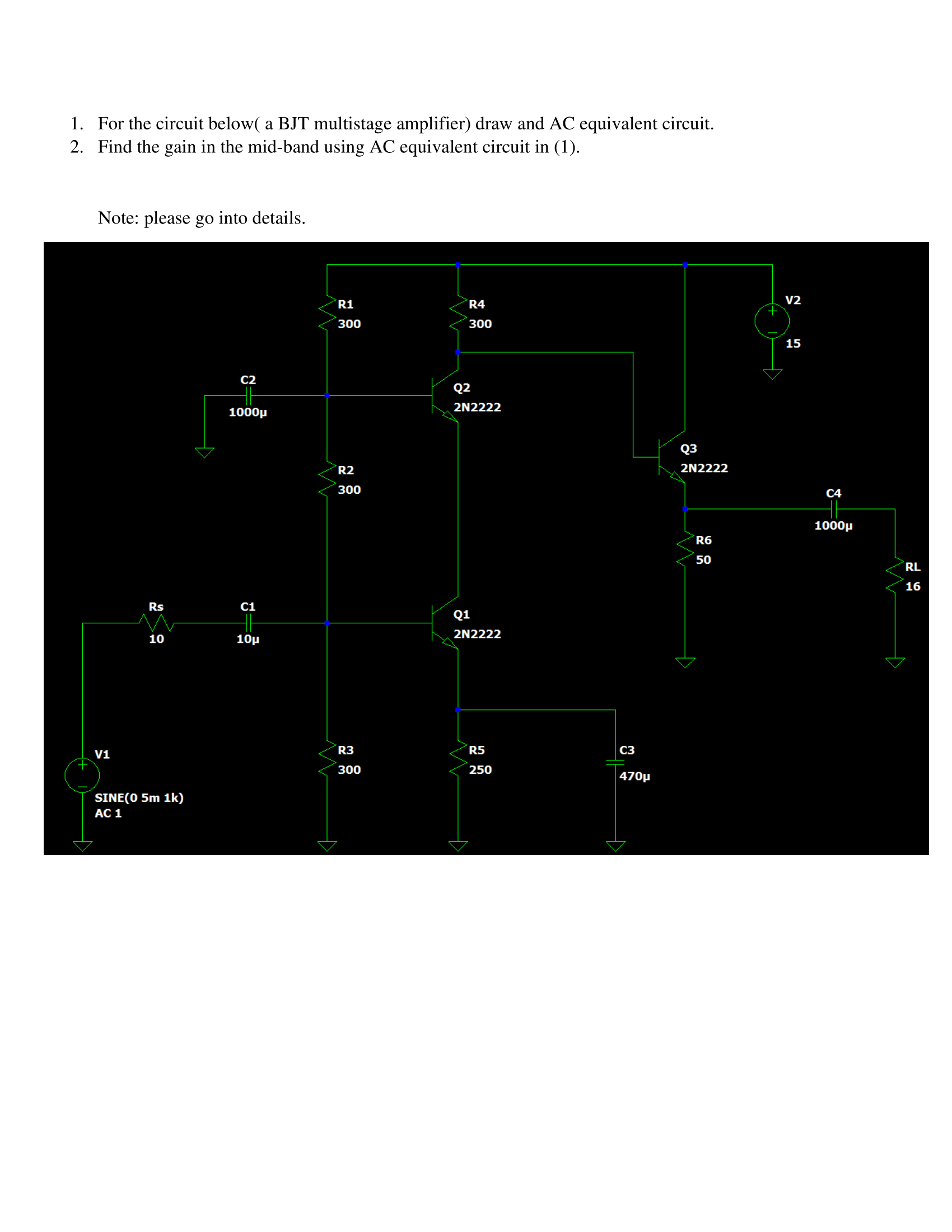

1. For the circuit below( a BJT multistage amplifier) draw and AC equivalent circuit. Find the gain in the mid-band using AC equivalent circuit in (1). 2. Note: please go into details. R4 300 C2 1000μ C1 10μ Đ Rs 10 V1 SINE(0 5m 1k) AC 1 R1 300 R2 300 R3 300 Q2 2N2222 Q1 2N2222 R5 250 Đ C3 470μ Q3 2N2222 R6 50 V2 15 C4 1000μ RL 16
