2) Using the curves of Fig 1.18: b) a) Determine the voltage across each diode at a current of 2 mA. Repeat for a curren

[answerhappygod]

2 Using The Curves Of Fig 1 18 B A Determine The Voltage Across Each Diode At A Current Of 2 Ma Repeat For A Curren 1 (38.14 KiB) Viewed 29 times

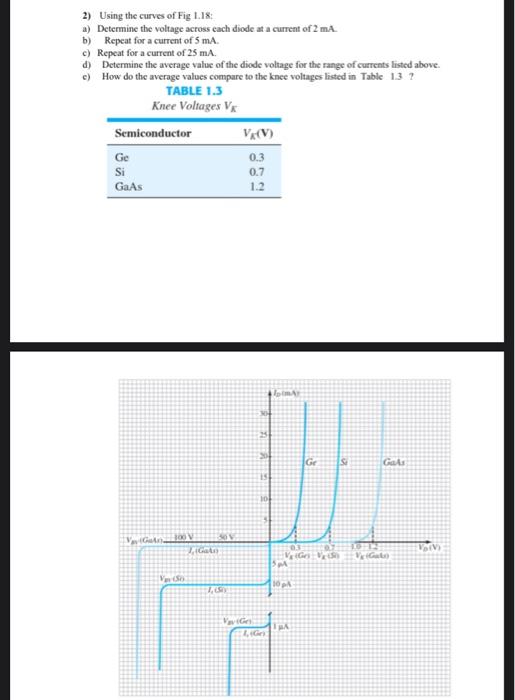

2) Using the curves of Fig 1.18: b) a) Determine the voltage across each diode at a current of 2 mA. Repeat for a current of 5 mA. c) Repeat for a current of 25 mA. d) Determine the average value of the diode voltage for the range of currents listed above. e) How do the average values compare to the knee voltages listed in Table 1.3 ? TABLE 1.3 Knee Voltages VK Semiconductor Ge Si GaAs Get 300 V V do 36 V GaAn 1,50 0.3 0.7 1.2 Va (Ge 200 15 10 4, Ge IpimAr Ge V₂ Gri Ve S 10 pk THA Si GaAs Ve Gato
