Assume that two networks (see Figure 10) are connected by two conductors having a net impedance of Z-j1 ohm. The voltage

Post by answerhappygod »

Assume That Two Networks See Figure 10 Are Connected By Two Conductors Having A Net Impedance Of Z J1 Ohm The Voltage 1
Assume That Two Networks See Figure 10 Are Connected By Two Conductors Having A Net Impedance Of Z J1 Ohm The Voltage 1 (22.14 KiB) Viewed 17 times

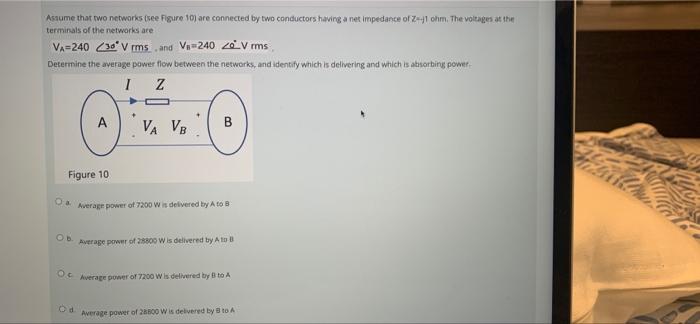

Assume that two networks (see Figure 10) are connected by two conductors having a net impedance of Z-j1 ohm. The voltages at the terminals of the networks are i VA=240 230V rms and V₁=240 20 V rms Determine the average power flow between the networks, and identify which is delivering and which is absorbing power I Z + A VA VB Figure 10 Average power of 7200 W is delivered by A to B Ob Average power of 28800 W is delivered by A to B Oc Average power of 7200 W is delivered by B to A Od. Average power of 28800 W is delivered by B to A Oa
