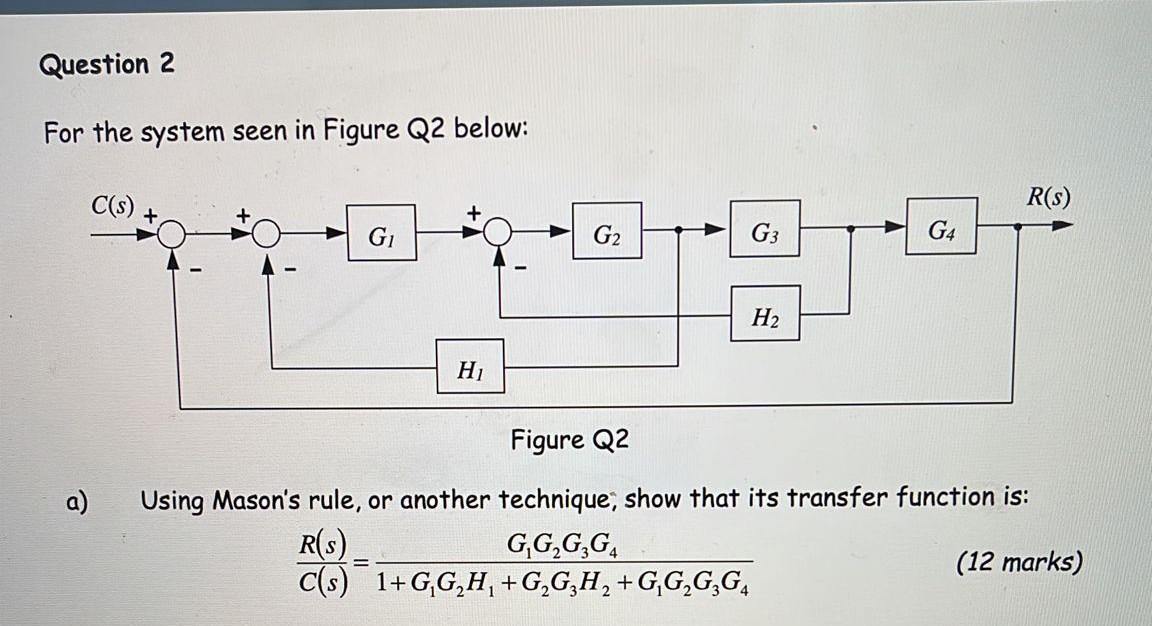

Question 2 For the system seen in Figure Q2 below: C(s) G₁ G₂ G3 G4 H₂ H₁ Figure Q2 a) Using Mason's rule, or another te

[answerhappygod]

Question 2 For The System Seen In Figure Q2 Below C S G G G3 G4 H H Figure Q2 A Using Mason S Rule Or Another Te 1 (87.38 KiB) Viewed 8 times

Question 2 For the system seen in Figure Q2 below: C(s) G₁ G₂ G3 G4 H₂ H₁ Figure Q2 a) Using Mason's rule, or another technique, show that its transfer function is: R(s) G₁G₂G₂G4 = (12 marks) C(s) 1+G,G,H, +G₂G₂H₂ +G₁G₂G₂G4 R(s)
