Question 4 (a) Illustrate the unipolar NRZ line coding waveform for the binary data sequence given as 0100111010. (b) Sh

[answerhappygod]

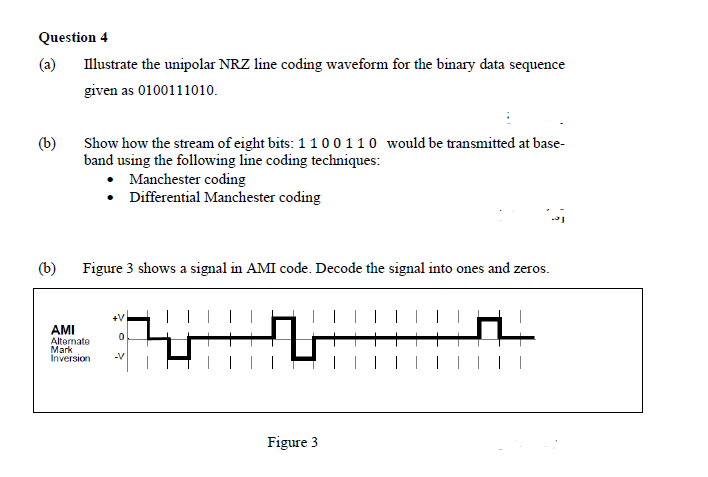

Question 4 A Illustrate The Unipolar Nrz Line Coding Waveform For The Binary Data Sequence Given As 0100111010 B Sh 1 (27.53 KiB) Viewed 12 times

Question 4 (a) Illustrate the unipolar NRZ line coding waveform for the binary data sequence given as 0100111010. (b) Show how the stream of eight bits: 1 100 110 would be transmitted at base- band using the following line coding techniques: Manchester coding • Differential Manchester coding (b) Figure 3 shows a signal in AMI code. Decode the signal into ones and zeros. +V AMI 0 Alternate Mark Inversion -V Figure 3
