Experiment (11): MOSFET Characteristics 019 Discussion: (1) From your practical results, plot the drain characteristic c

[answerhappygod]

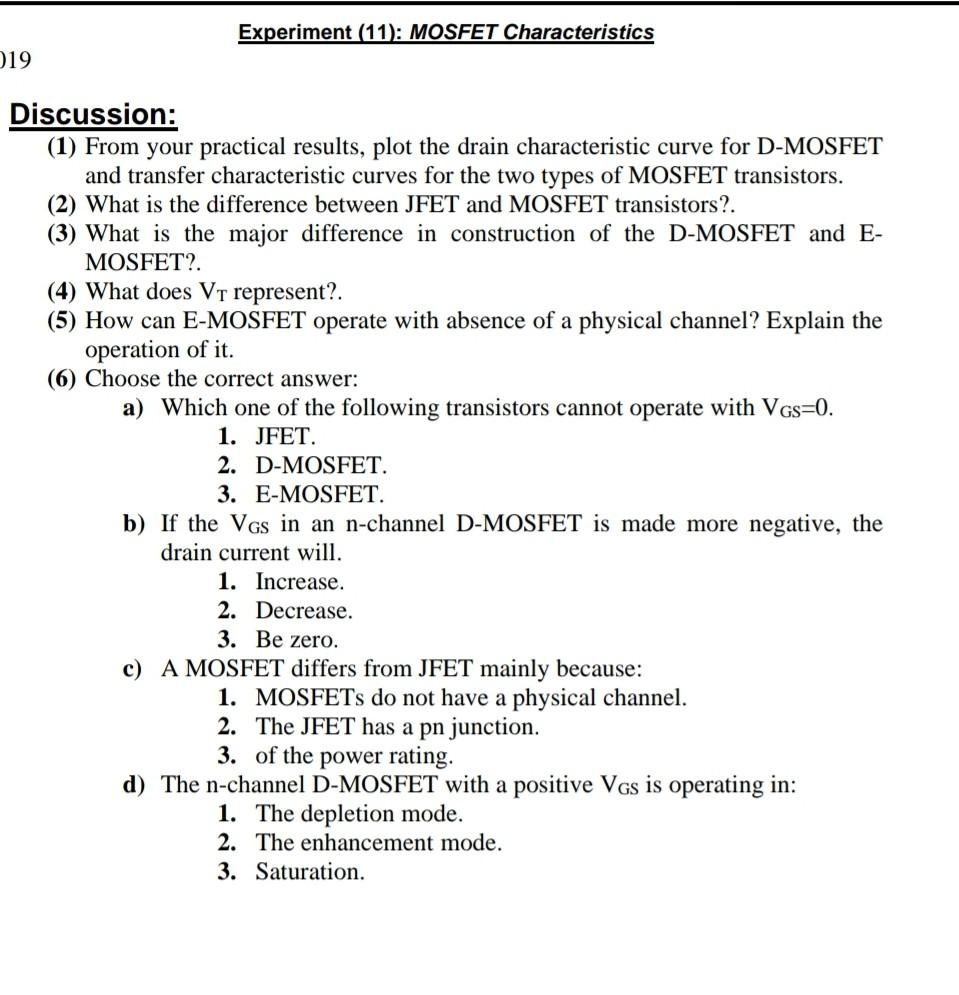

Experiment 11 Mosfet Characteristics 019 Discussion 1 From Your Practical Results Plot The Drain Characteristic C 1 (105.43 KiB) Viewed 25 times

Experiment (11): MOSFET Characteristics 019 Discussion: (1) From your practical results, plot the drain characteristic curve for D-MOSFET and transfer characteristic curves for the two types of MOSFET transistors. (2) What is the difference between JFET and MOSFET transistors?. (3) What is the major difference in construction of the D-MOSFET and E- MOSFET?. (4) What does VT represent?. (5) How can E-MOSFET operate with absence of a physical channel? Explain the operation of it. (6) Choose the correct answer: a) Which one of the following transistors cannot operate with VGS=0. 1. JFET. 2. D-MOSFET. 3. E-MOSFET. b) If the VGs in an n-channel D-MOSFET is made more negative, the drain current will. 1. Increase. 2. Decrease. 3. Be zero. c) A MOSFET differs from JFET mainly because: 1. MOSFETs do not have a physical channel. 2. The JFET has a pn junction. 3. of the power rating. d) The n-channel D-MOSFET with a positive VGs is operating in: 1. The depletion mode. 2. The enhancement mode. 3. Saturation.
