derive the equivalent resistor between (A) and (B) of the circuit shown in Figure Q1, where the voltage source V has no

Post by answerhappygod »

Derive The Equivalent Resistor Between A And B Of The Circuit Shown In Figure Q1 Where The Voltage Source V Has No 1
Derive The Equivalent Resistor Between A And B Of The Circuit Shown In Figure Q1 Where The Voltage Source V Has No 1 (48.85 KiB) Viewed 19 times

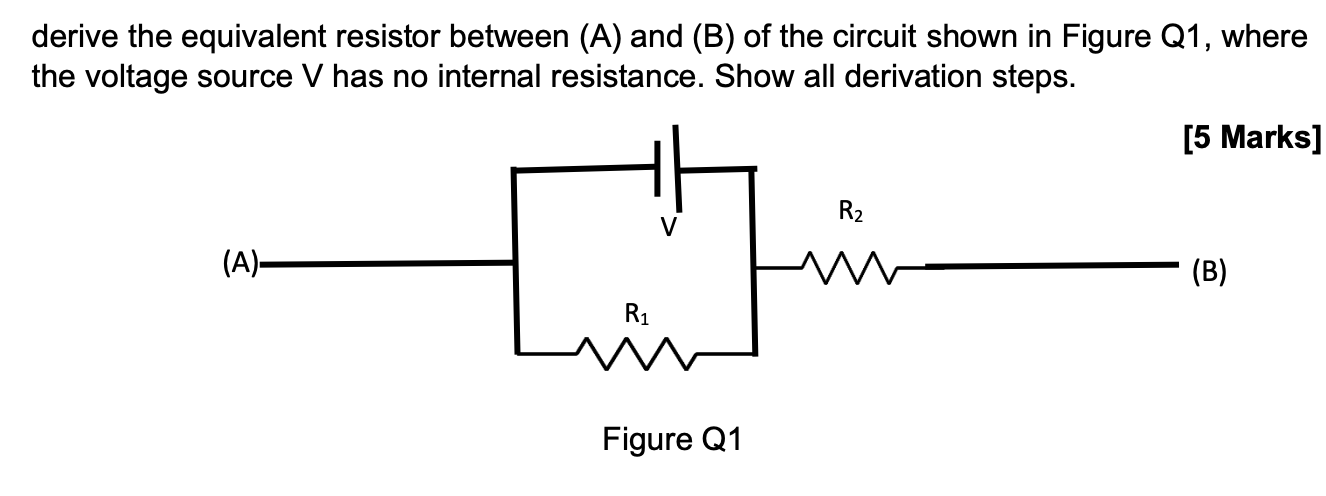

derive the equivalent resistor between (A) and (B) of the circuit shown in Figure Q1, where the voltage source V has no internal resistance. Show all derivation steps. [5 Marks] R₂ Jü (B) (A)= R₁ Figure Q1
