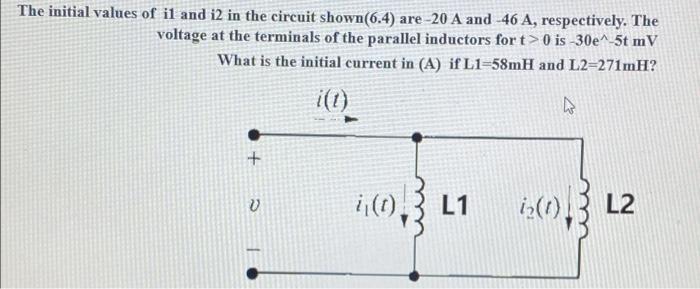

The initial values of il and i2 in the circuit shown(6.4) are-20 A and -46 A, respectively. The voltage at the terminals of the parallel inductors for t> 0 is-30e^-5t mV What is the initial current in (A) if L1-58mH and L2=271mH? A + V i₁(c) L1 iz(1) ↓ 3 L2

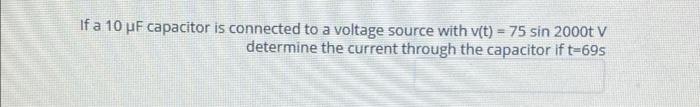

If a 10 µF capacitor is connected to a voltage source with v(t) = 75 sin 2000t V determine the current through the capacitor if t-69s
