1. 2 (a) A variable dielectric capacitance sensor is used to sense motion. What is the change in capacitance for the sit

Post by answerhappygod »

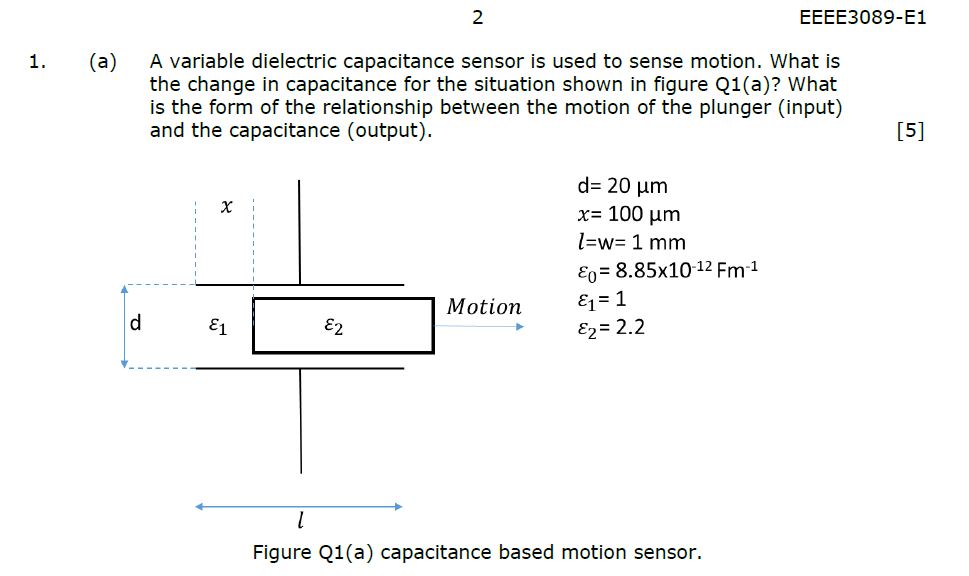

1 2 A A Variable Dielectric Capacitance Sensor Is Used To Sense Motion What Is The Change In Capacitance For The Sit 1
1 2 A A Variable Dielectric Capacitance Sensor Is Used To Sense Motion What Is The Change In Capacitance For The Sit 1 (35.88 KiB) Viewed 8 times
1. 2 (a) A variable dielectric capacitance sensor is used to sense motion. What is the change in capacitance for the situation shown in figure Q1(a)? What is the form of the relationship between the motion of the plunger (input) and the capacitance (output). d= 20 μm X x= 100 μm l=w= 1 mm Eo=8.85x10-12 Fm-¹ &₁=1 Motion E1 E2 &2 = 2.2 1 Figure Q1(a) capacitance based motion sensor. d EEEE3089-E1 [5]
