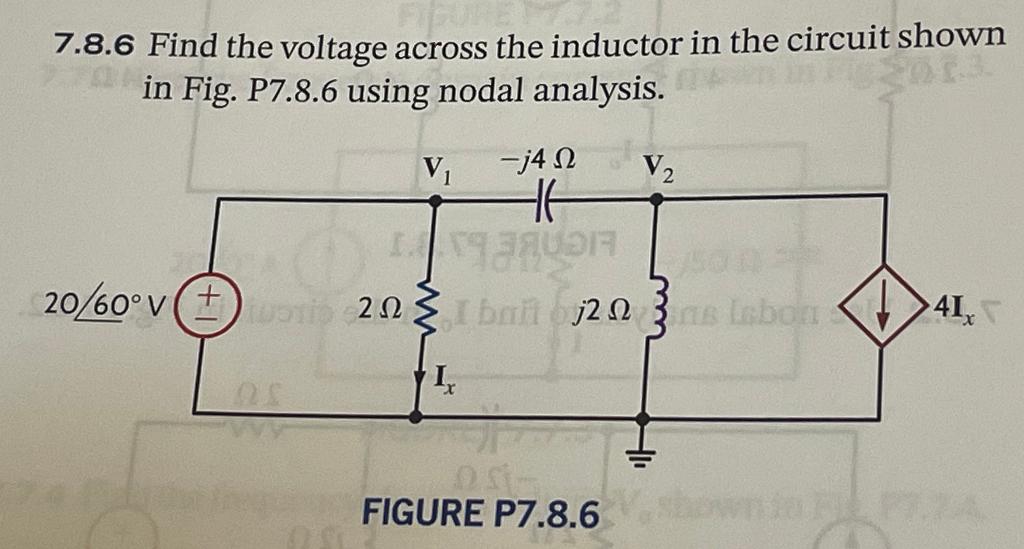

7.8.6 Find the voltage across the inductor in the circuit shown in Fig. P7.8.6 using nodal analysis. V₁ -j4 V₂ 16 H A 20
