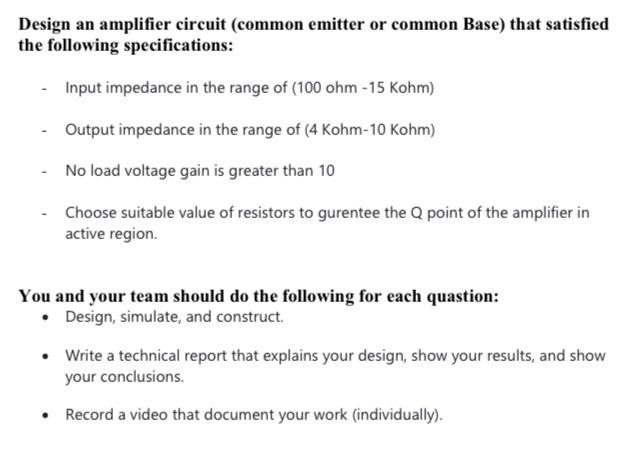

Design an amplifier circuit (common emitter or common Base) that satisfied the following specifications: Input impedance in the range of (100 ohm -15 Kohm) Output impedance in the range of (4 Kohm-10 Kohm) No load voltage gain is greater than 10 Choose suitable value of resistors to gurentee the Q point of the amplifier in active region. You and your team should do the following for each quastion: • Design, simulate, and construct. • Write a technical report that explains your design, show your results, and show your conclusions. • Record a video that document your work (individually).
