Q3. Design an arithmetic circuit with one variable S and Two n-bit data input A&B the circuit generates the following Fo

Post by answerhappygod »

Q3 Design An Arithmetic Circuit With One Variable S And Two N Bit Data Input A B The Circuit Generates The Following Fo 1
Q3 Design An Arithmetic Circuit With One Variable S And Two N Bit Data Input A B The Circuit Generates The Following Fo 1 (21.28 KiB) Viewed 14 times

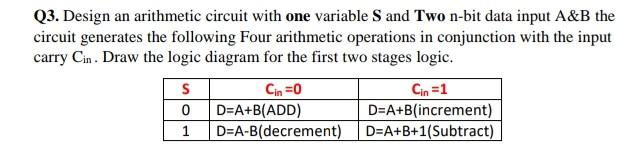

Q3. Design an arithmetic circuit with one variable S and Two n-bit data input A&B the circuit generates the following Four arithmetic operations in conjunction with the input carry Cin. Draw the logic diagram for the first two stages logic. S Cin=0 0 D=A+B(ADD) Cin=1 D=A+B(increment) D=A+B+1(Subtract) 1 D-A-B(decrement)
