2. Draw the RC circuit for the following logic circuit and calculate the delay for F1 and F2, assume that for both PMOS,

[answerhappygod]

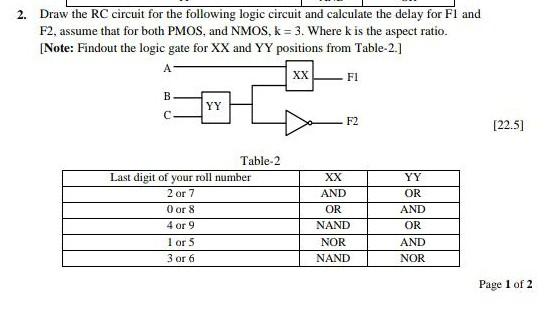

2 Draw The Rc Circuit For The Following Logic Circuit And Calculate The Delay For F1 And F2 Assume That For Both Pmos 1 (26.81 KiB) Viewed 10 times

2. Draw the RC circuit for the following logic circuit and calculate the delay for F1 and F2, assume that for both PMOS, and NMOS, k= 3. Where k is the aspect ratio. [Note: Findout the logic gate for XX and YY positions from Table-2.] A XX FI B YY C F2 [22.5] Last digit of your roll number 2 or 7 0 or 8 4 or 9 1 or 5 3 or 6 Page 1 of 2 Table-2 XX AND OR NAND NOR NAND YY OR AND OR AND NOR
