Example 4-1 10 [V] 60 [KHZ] ↑ When the input voltage is 20 to 40 [V] and the output voltage is V] and the output current

Post by answerhappygod »

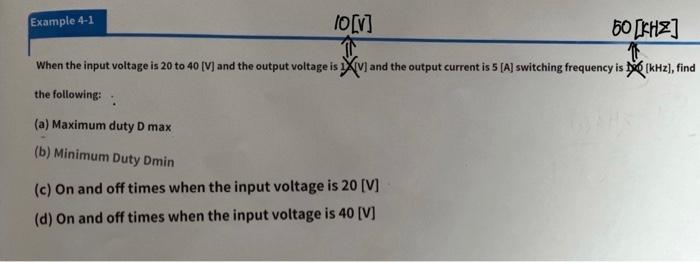

Example 4 1 10 V 60 Khz When The Input Voltage Is 20 To 40 V And The Output Voltage Is V And The Output Current 1
Example 4 1 10 V 60 Khz When The Input Voltage Is 20 To 40 V And The Output Voltage Is V And The Output Current 1 (18.77 KiB) Viewed 9 times
Example 4-1 10 [V] 60 [KHZ] ↑ When the input voltage is 20 to 40 [V] and the output voltage is V] and the output current is 5 [A] switching frequency is [kHz), find the following: (a) Maximum duty D max (b) Minimum Duty Dmin (c) On and off times when the input voltage is 20 [V] (d) On and off times when the input voltage is 40 [V]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
