X7=2 How to convert the imaginary unit to cos？
X7=2
How to convert the imaginary unit to cos？

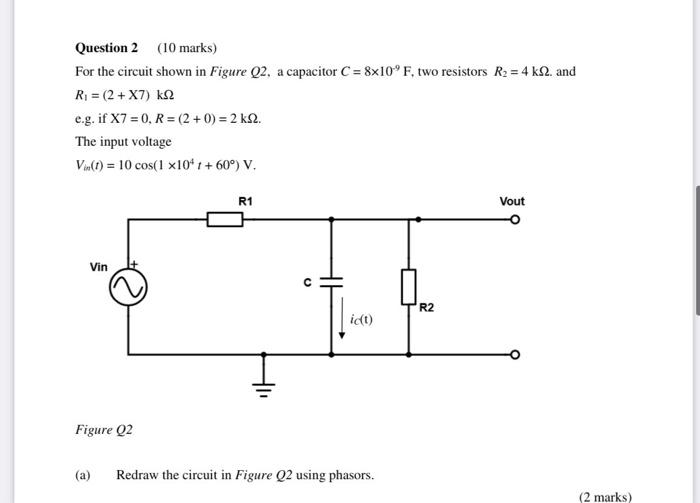

Question 2 (10 marks) For the circuit shown in Figure Q2, a capacitor C= 8x10° F, two resistors R₂ = 4 k. and R₁ = (2+ X7) k e.g. if X7 = 0, R = (2+0) = 2 ks2. The input voltage Vin(t) = 10 cos(1 x10*1 + 60°) V. R1 Vout Vin ic(t) Figure Q2 (a) Redraw the circuit in Figure Q2 using phasors. U R2 (2 marks)
How to convert the imaginary unit to cos？
Question 2 (10 marks) For the circuit shown in Figure Q2, a capacitor C= 8x10° F, two resistors R₂ = 4 k. and R₁ = (2+ X7) k e.g. if X7 = 0, R = (2+0) = 2 ks2. The input voltage Vin(t) = 10 cos(1 x10*1 + 60°) V. R1 Vout Vin ic(t) Figure Q2 (a) Redraw the circuit in Figure Q2 using phasors. U R2 (2 marks)
