A balanced 30 load connected Y with an impedance per 30 / 30° ohms, has an inter- phase voltage of 4.4 kV. The load is c

[answerhappygod]

A Balanced 30 Load Connected Y With An Impedance Per 30 30 Ohms Has An Inter Phase Voltage Of 4 4 Kv The Load Is C 1 (23.13 KiB) Viewed 26 times

A Balanced 30 Load Connected Y With An Impedance Per 30 30 Ohms Has An Inter Phase Voltage Of 4 4 Kv The Load Is C 2 (23.13 KiB) Viewed 26 times

A Balanced 30 Load Connected Y With An Impedance Per 30 30 Ohms Has An Inter Phase Voltage Of 4 4 Kv The Load Is C 3 (22.18 KiB) Viewed 26 times

A Balanced 30 Load Connected Y With An Impedance Per 30 30 Ohms Has An Inter Phase Voltage Of 4 4 Kv The Load Is C 4 (22.18 KiB) Viewed 26 times

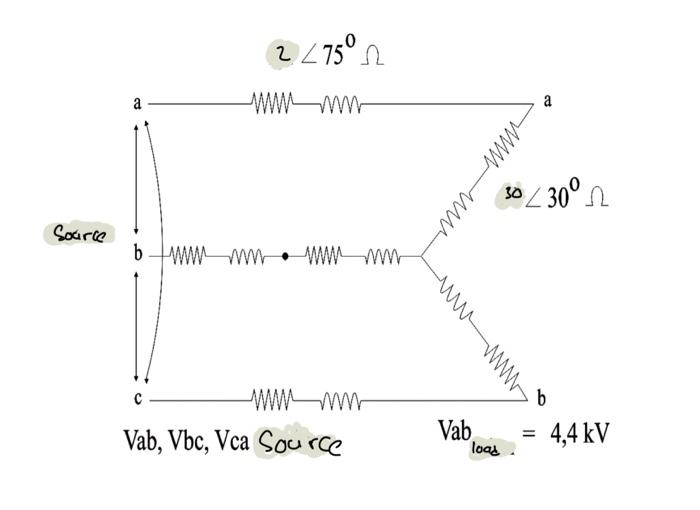

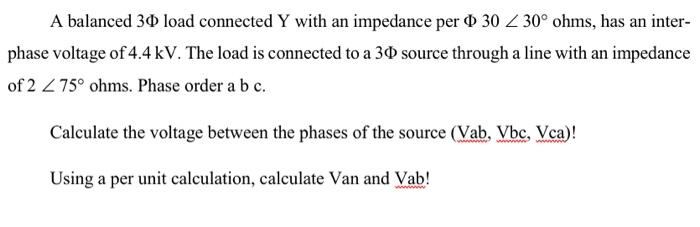

A balanced 30 load connected Y with an impedance per 30 / 30° ohms, has an inter- phase voltage of 4.4 kV. The load is connected to a 30 source through a line with an impedance of 2 75° ohms. Phase order a b c. Calculate the voltage between the phases of the source (Vab, Vbc, Vca)! Using a per unit calculation, calculate Van and Vab!

Source 2275⁰ wwwwwwww bwwwwww www www с www ww Vab, Vbc, Vca Source a w m Vab load wwwww •30⁰ = b 4,4 kV
