Experiment No. 1 Aim: To study logic gates and verify their truth tables. Equipments: Components: LED, Probe, IC 7400, I

[answerhappygod]

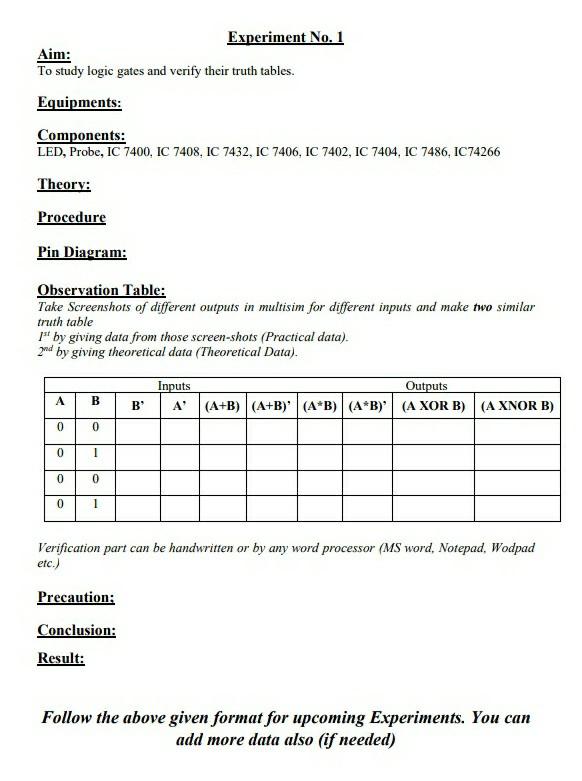

Experiment No 1 Aim To Study Logic Gates And Verify Their Truth Tables Equipments Components Led Probe Ic 7400 I 1 (53 KiB) Viewed 43 times

Experiment No. 1 Aim: To study logic gates and verify their truth tables. Equipments: Components: LED, Probe, IC 7400, IC 7408, IC 7432, IC 7406, IC 7402, IC 7404, IC 7486, IC74266 Theory: Procedure Pin Diagram: Observation Table: Take Screenshots of different outputs in multisim for different inputs and make two similar truth table 1st by giving data from those screen-shots (Practical data). 2nd by giving theoretical data (Theoretical Data). Inputs Outputs A B B' A' (A+B) (A+B) (A*B) (A*B) (A XOR B) (A XNOR B) 0 0 0 0 0 0 1 Verification part can be handwritten or by any word processor (MS word, Notepad, Wodpad etc.) Precaution: Conclusion: Result: Follow the above given format for upcoming Experiments. You can add more data also (if needed)
