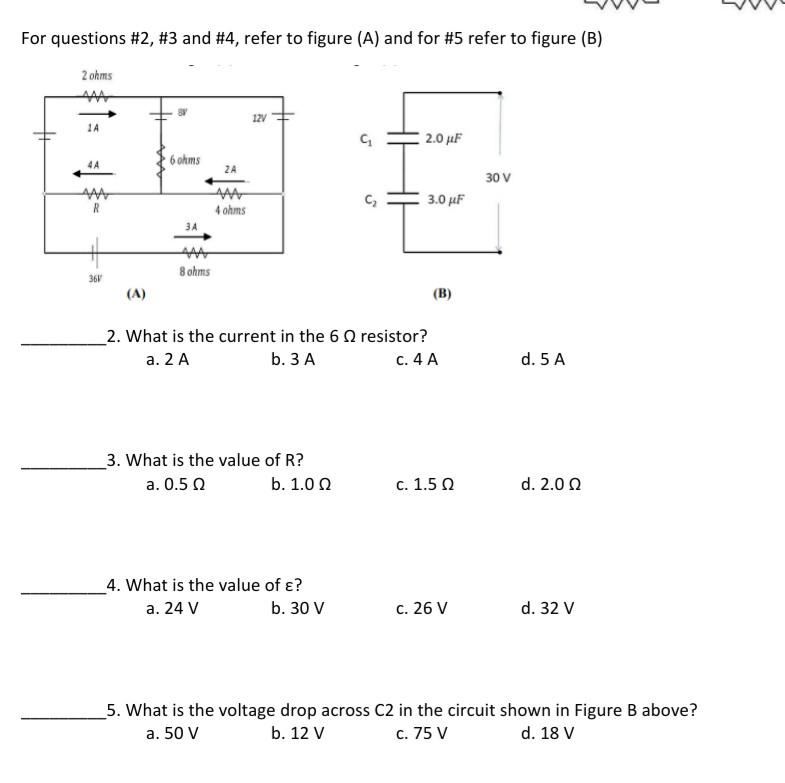

For questions #2, #3 and #4, refer to figure (A) and for #5 refer to figure (B) 2 ohms 12V 1A 2.0 μF 6 ohms AAA 3.0 μF 3

[answerhappygod]

1 (41.33 KiB) Viewed 11 times

For questions #2, #3 and #4, refer to figure (A) and for #5 refer to figure (B) 2 ohms 12V 1A 2.0 μF 6 ohms AAA 3.0 μF 3A AAA 8 ohms 36V (A) (B) 2. What is the current in the 6 Q resistor? a. 2 A b. 3 A c. 4 A d. 5 A 3. What is the value of R? a. 0.5 Ω c. 1.5 Ω d. 2.0 Ω 4. What is the value of £? a. 24 V b. 30 V c. 26 V d. 32 V 5. What is the voltage drop across C2 in the circuit shown in Figure B above? a. 50 V b. 12 V c. 75 V d. 18 V ZA MA 4 ohms b. 1.0 Ω 30 V
