IV. In the following figure, a uniform beam of length 6.00 meter is supported by a horizontal cable and a hinge at angle

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

IV. In the following figure, a uniform beam of length 6.00 meter is supported by a horizontal cable and a hinge at angle

Post by answerhappygod »

Iv In The Following Figure A Uniform Beam Of Length 6 00 Meter Is Supported By A Horizontal Cable And A Hinge At Angle 1
Iv In The Following Figure A Uniform Beam Of Length 6 00 Meter Is Supported By A Horizontal Cable And A Hinge At Angle 1 (44 KiB) Viewed 16 times

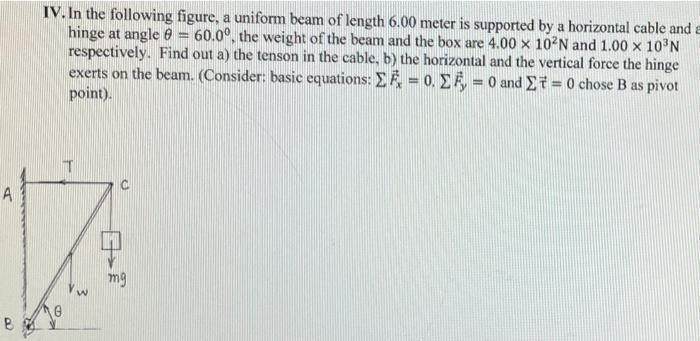

IV. In the following figure, a uniform beam of length 6.00 meter is supported by a horizontal cable and a hinge at angle 8 = 60.0°, the weight of the beam and the box are 4.00 x 10²N and 1.00 x 10°N respectively. Find out a) the tenson in the cable, b) the horizontal and the vertical force the hinge exerts on the beam. (Consider: basic equations: E F = 0. EĚ, = 0 and i = 0 chose B as pivot point). A mg w B
